For the truss shown below, F= 12 kN and L=3 m. a) Determine the force in member BE. A and E are constant. Assume Nge is

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the truss shown below, F= 12 kN and L=3 m. a) Determine the force in member BE. A and E are constant. Assume Nge is

Post by answerhappygod »

For The Truss Shown Below F 12 Kn And L 3 M A Determine The Force In Member Be A And E Are Constant Assume Nge Is 1
For The Truss Shown Below F 12 Kn And L 3 M A Determine The Force In Member Be A And E Are Constant Assume Nge Is 1 (21.94 KiB) Viewed 14 times

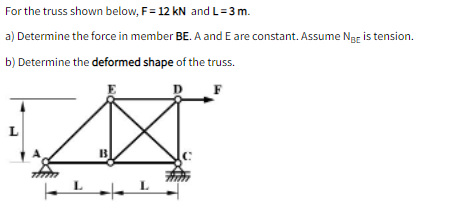

For the truss shown below, F= 12 kN and L=3 m. a) Determine the force in member BE. A and E are constant. Assume Nge is tension. b) Determine the deformed shape of the truss. D L BI L
