Problem 3 For the series/parallel pipe system shown, determine the total head loss in the system if the discharge in lin

[answerhappygod]

Problem 3 For The Series Parallel Pipe System Shown Determine The Total Head Loss In The System If The Discharge In Lin 1 (641.74 KiB) Viewed 21 times

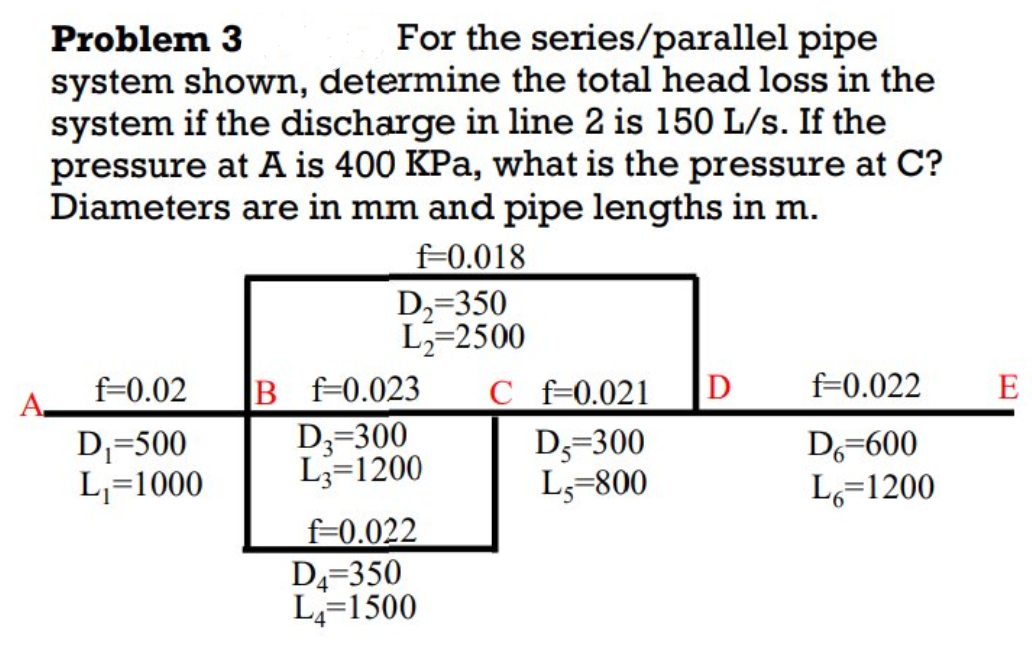

Problem 3 For the series/parallel pipe system shown, determine the total head loss in the system if the discharge in line 2 is 150 L/s. If the pressure at A is 400 kPa, what is the pressure at C? Diameters are in mm and pipe lengths in m. f=0.018 D2=350 L2=2500 A f=0.02 B f=0.023 Cf=0.021 D f=0.022 D=500 Dz=300 D=300 D=600 L=1000 Lz=1200 L=800 L=1200 f=0.022 D4=350 L4=1500 E
