Qla) The beam EF has a uniform weight of 1200 N/m, and the trolley supports a load of 6000 N (Figure la.i). The cross se

[answerhappygod]

Qla The Beam Ef Has A Uniform Weight Of 1200 N M And The Trolley Supports A Load Of 6000 N Figure La I The Cross Se 1 (103.51 KiB) Viewed 10 times

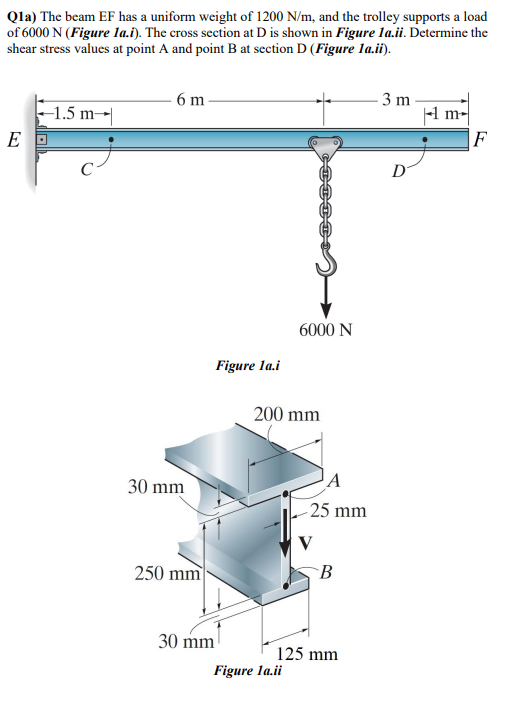

Qla) The beam EF has a uniform weight of 1200 N/m, and the trolley supports a load of 6000 N (Figure la.i). The cross section at D is shown in Figure la.ii. Determine the shear stress values at point A and point B at section D (Figure la.it). 6 m -3 m -1.5 m E O C -1 m- F D 6000 N Figure la.i 200 mm 30 mm 25 mm V 250 mm B 30 mm 125 mm Figure la.ii
