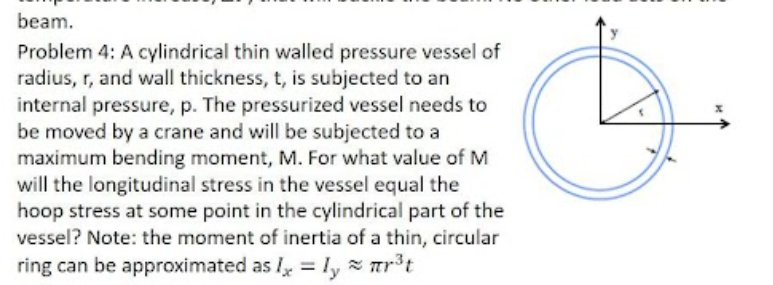

beam. Problem 4: A cylindrical thin walled pressure vessel of radius, r, and wall thickness, t, is subjected to an internal pressure, p. The pressurized vessel needs to be moved by a crane and will be subjected to a maximum bending moment, M. For what value of M will the longitudinal stress in the vessel equal the hoop stress at some point in the cylindrical part of the vessel? Note: the moment of inertia of a thin, circular ring can be approximated as Ix = lyr34 —
