For the beam loaded as shown in the figure. (1) Derive the expressions for the shear force and the bending moment for ea

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the beam loaded as shown in the figure. (1) Derive the expressions for the shear force and the bending moment for ea

Post by answerhappygod »

For The Beam Loaded As Shown In The Figure 1 Derive The Expressions For The Shear Force And The Bending Moment For Ea 1
For The Beam Loaded As Shown In The Figure 1 Derive The Expressions For The Shear Force And The Bending Moment For Ea 1 (49.56 KiB) Viewed 12 times

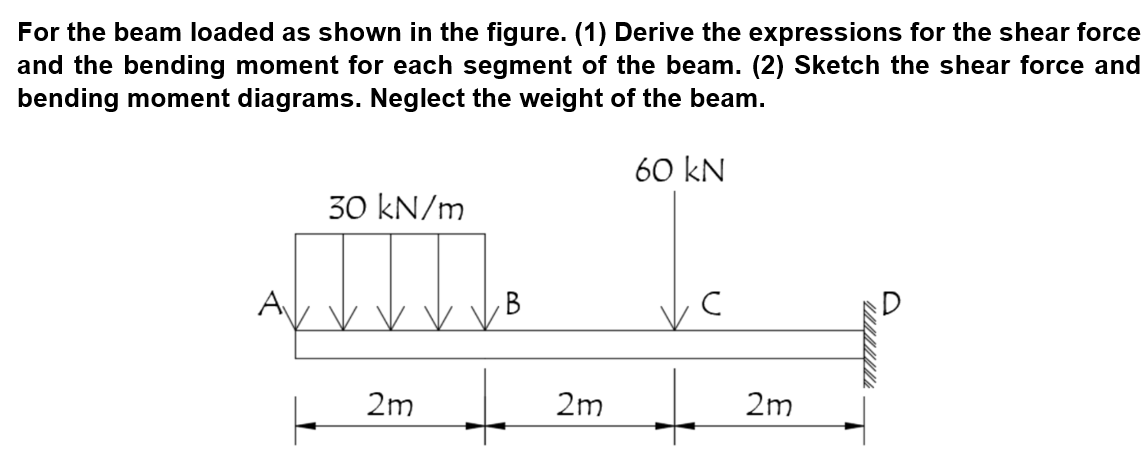

For the beam loaded as shown in the figure. (1) Derive the expressions for the shear force and the bending moment for each segment of the beam. (2) Sketch the shear force and bending moment diagrams. Neglect the weight of the beam. 60 kN 30 kN/m AJ B C 2m 2m 2m -
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
