which of the following nearly gives the member end moment at
C
116.66 kN - m
b. 102. 63 kN - m
c. 58.33 kN - m
d. 44.06 kN -m
which of the following nearly gives the horizontal reaction in
support A
a. 25 kN
b. 35 kN
c. 20 kN
d. 10 kN
MCD and MDC are?
a. Negative moments
b. Positive moments
c. Zero moment
d. MCD is positive while MDC is negative

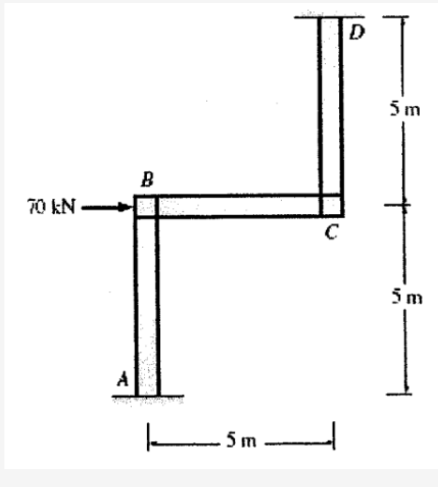

D 5 m B 70 EN с 5 m L5m
