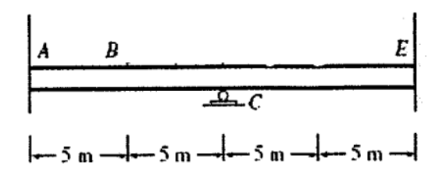

Consider the beam in the figure without the applied load. If
support C settles 24mm and support A rotates
counterclockwise .005 rad. E = 200 Gpa, I = 120 x 10^6
mm^4
7. which of the following nearly gives the reaction in support
C
a. 19.01 kN
b. 15.07 kN
c. 21.02 kN
d. 14.06 kN
8. which of the following nearly gives the reaction in support
E
a. 8.71 kN
b. 2.09 kN
c. 5.67 kN
d. 10.65 kN
9. which of the following nearly gives the moment in support
A
a. 40.56 kN - m
b. 30.61 kN - m
c. 56. 38 kN - m
d. 76.56 kN - m
