A simply supported reinforced concrete beam shown in Figure 2 is to carry a uniformly distributed load. The resulted des
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A simply supported reinforced concrete beam shown in Figure 2 is to carry a uniformly distributed load. The resulted des

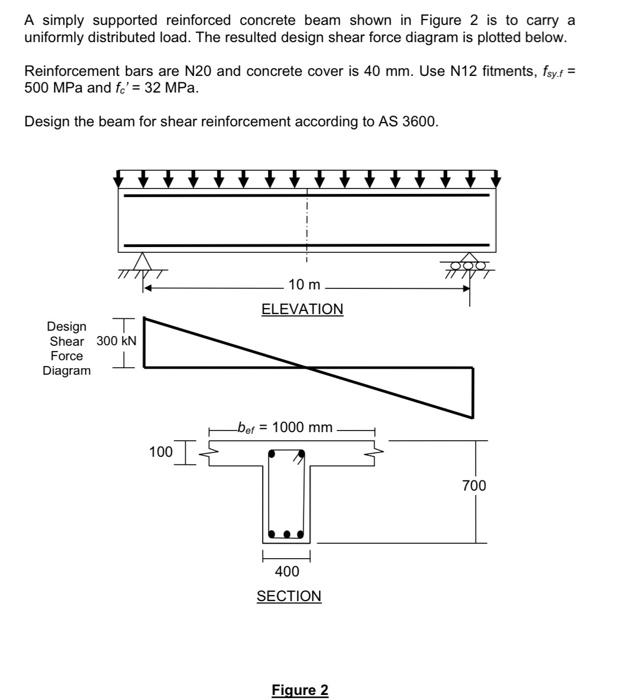

A simply supported reinforced concrete beam shown in Figure 2 is to carry a uniformly distributed load. The resulted design shear force diagram is plotted below. Reinforcement bars are N20 and concrete cover is 40 mm. Use N12 fitments, fsy: = 500 MPa and fc' = 32 MPa. Design the beam for shear reinforcement according to AS 3600. TA 10 m ELEVATION Design T Shear 300 KN Force I Diagram -ber = 1000 mm 100 [ { 700 400 SECTION Figure 2
