QUESTION 1 The composite beam in Figure 1 is made of wood (Ew = 15 GPa), zirconium on top (Ez = 100 GPa) and molybdenum

[answerhappygod]

Question 1 The Composite Beam In Figure 1 Is Made Of Wood Ew 15 Gpa Zirconium On Top Ez 100 Gpa And Molybdenum 1 (297.46 KiB) Viewed 13 times

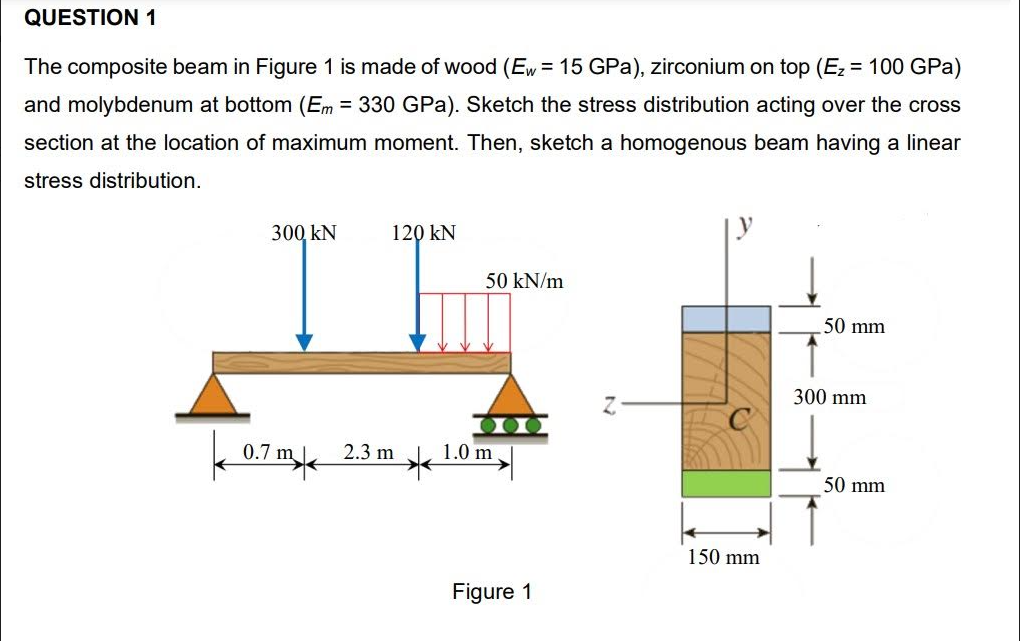

QUESTION 1 The composite beam in Figure 1 is made of wood (Ew = 15 GPa), zirconium on top (Ez = 100 GPa) and molybdenum at bottom (Em = 330 GPa). Sketch the stress distribution acting over the cross section at the location of maximum moment. Then, sketch a homogenous beam having a linear stress distribution. 300 KN 120 KN 50 kN/m 50 mm Z 300 mm K0.7 male 2.3 m 1.0 m ** 50 mm 150 mm Figure 1
