QUESTION 2 In Figure 2, the shaft is made of a solid A992 steel at section AB (r3 = 25 mm), Ti-6A1-4V titanium core at s

[answerhappygod]

Question 2 In Figure 2 The Shaft Is Made Of A Solid A992 Steel At Section Ab R3 25 Mm Ti 6a1 4v Titanium Core At S 1 (364.2 KiB) Viewed 10 times

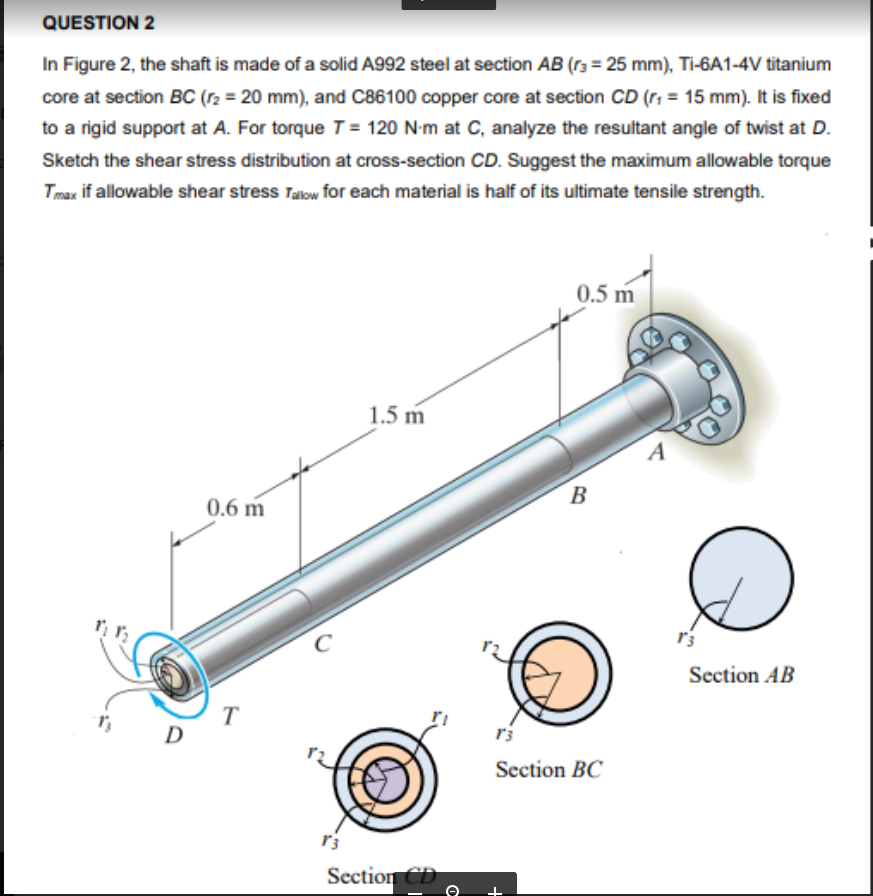

QUESTION 2 In Figure 2, the shaft is made of a solid A992 steel at section AB (r3 = 25 mm), Ti-6A1-4V titanium core at section BC (12 = 20 mm), and C86100 copper core at section CD (r = 15 mm). It is fixed to a rigid support at A. For torque T = 120 Nm at C, analyze the resultant angle of twist at D. Sketch the shear stress distribution at cross-section CD. Suggest the maximum allowable torque Tmax if allowable shear stress Tallow for each material is half of its ultimate tensile strength. 0.5 m 1.5 m A B 0.6 m с 13 Section AB T D r3 Section BC 13 Section CD o +
