Write the cam profile obtained from the displacement diagram above corresponding to the chosen follower and Write a foll

[answerhappygod]

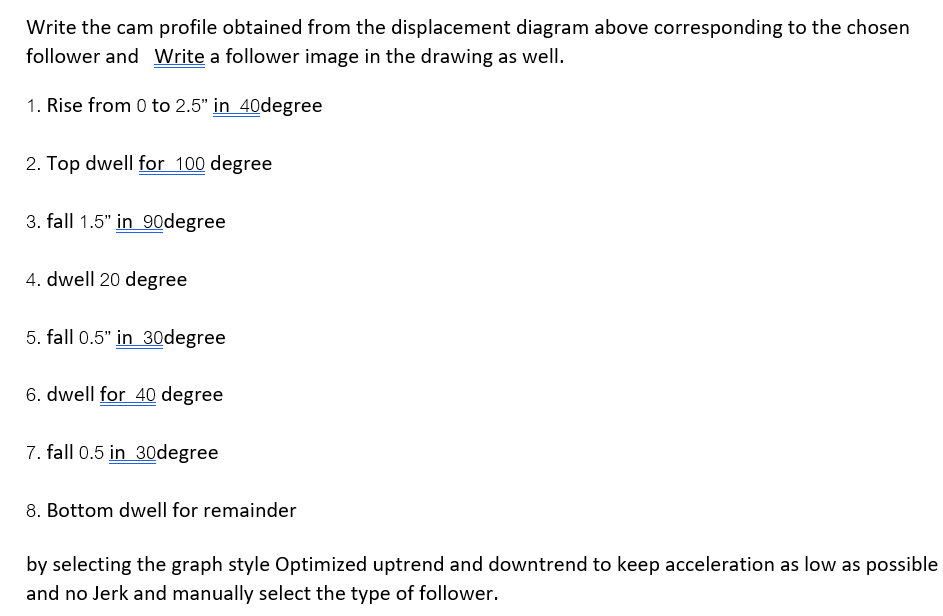

Write The Cam Profile Obtained From The Displacement Diagram Above Corresponding To The Chosen Follower And Write A Foll 1 (31.61 KiB) Viewed 10 times

Write the cam profile obtained from the displacement diagram above corresponding to the chosen follower and Write a follower image in the drawing as well. 1. Rise from 0 to 2.5" in 40degree 2. Top dwell for 100 degree 3. fall 1.5" in 90degree 4. dwell 20 degree 5. fall 0.5" in 30degree 6. dwell for 40 degree 7. fall 0.5 in 30degree 8. Bottom dwell for remainder by selecting the graph style Optimized uptrend and downtrend to keep acceleration as low as possible and no Jerk and manually select the type of follower.
