Is the question is to select the follower
and draw displacement diagram and Cam profile #

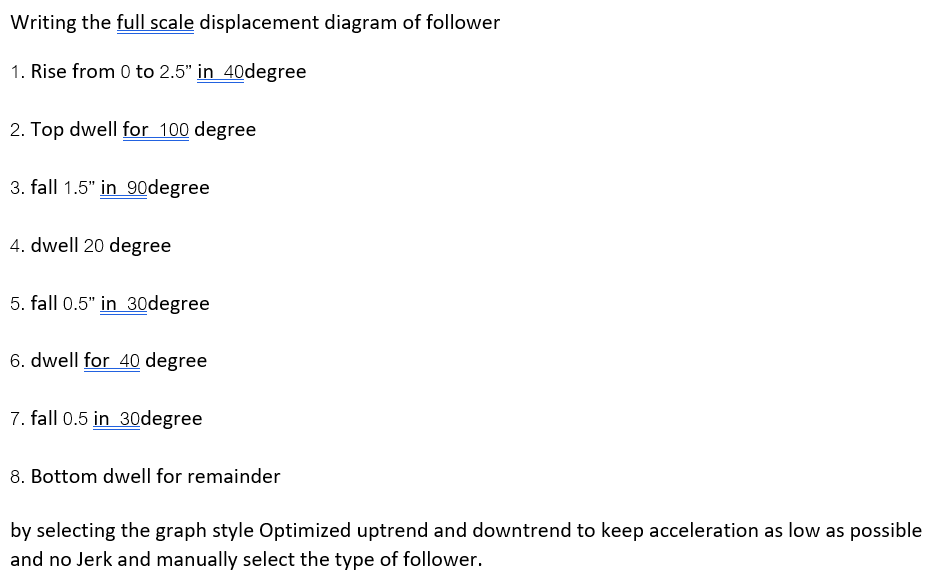

Writing the full scale displacement diagram of follower 1. Rise from 0 to 2.5" in 40degree 2. Top dwell for 100 degree 3. fall 1.5" in 90degree 4. dwell 20 degree 5. fall 0.5" in 30degree 6. dwell for 40 degree 7. fall 0.5 in 30degree 8. Bottom dwell for remainder by selecting the graph style Optimized uptrend and downtrend to keep acceleration as low as possible and no Jerk and manually select the type of follower.
