3. [40 pts] Consider the loads on the beam (distributed and point loads (100N)) below supported by a pin at A and a roll

[answerhappygod]

3 40 Pts Consider The Loads On The Beam Distributed And Point Loads 100n Below Supported By A Pin At A And A Roll 1 (106.01 KiB) Viewed 12 times

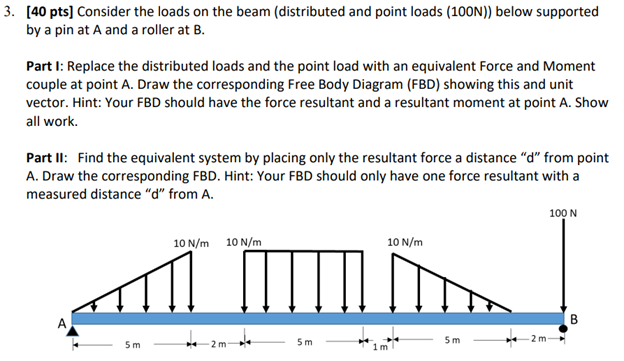

3. [40 pts] Consider the loads on the beam (distributed and point loads (100N)) below supported by a pin at A and a roller at B. Part I: Replace the distributed loads and the point load with an equivalent Force and Moment couple at point A. Draw the corresponding Free Body Diagram (FBD) showing this and unit vector. Hint: Your FBD should have the force resultant and a resultant moment at point A. Show all work. Part II: Find the equivalent system by placing only the resultant force a distance "d" from point A. Draw the corresponding FBD. Hint: Your FBD should only have one force resultant with a measured distance "d" from A. 100 N 10 N/m 10 N/m 10 N/m B 5 m 5 m 2 m 2m 5 m
