design a special inclined CNC milling machine that can carry 50 kg spindle. This spindle is desired to move with minimum

[answerhappygod]

Design A Special Inclined Cnc Milling Machine That Can Carry 50 Kg Spindle This Spindle Is Desired To Move With Minimum 1 (48.41 KiB) Viewed 13 times

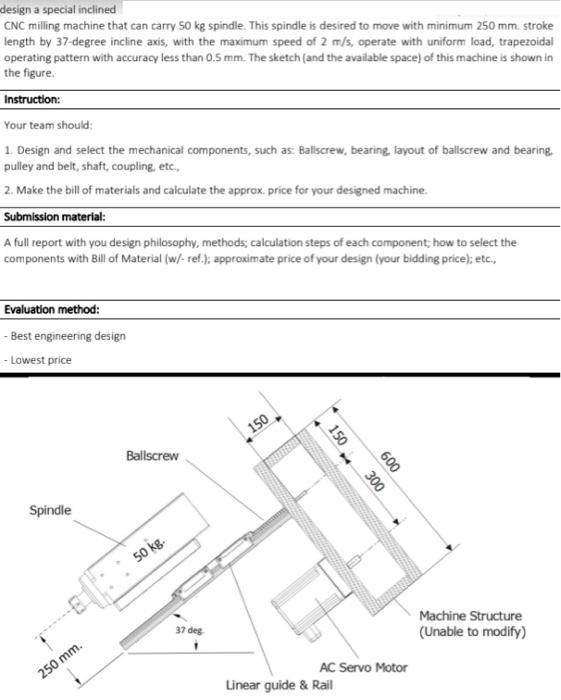

design a special inclined CNC milling machine that can carry 50 kg spindle. This spindle is desired to move with minimum 250 mm, stroke length by 37-degree incline axis, with the maximum speed of 2 m/s, operate with uniform load, trapezoidal operating pattern with accuracy less than 0.5 mm. The sketch (and the available space) of this machine is shown in the figure Instruction: Your team should 1. Design and select the mechanical components, such as: Ballscrew, bearing layout of ballscrew and bearing, pulley and belt, shaft, coupling, etc. 2. Make the bill of materials and calculate the approx. price for your designed machine. Submission material: A full report with you design philosophy, methods, calculation steps of each component: how to select the components with Bill of Material (w/- ref.: approximate price of your design (your bidding price); etc., Evaluation method: - Best engineering design - Lowest price 150 150 Ballscrew 1 009 300 Spindle 50 kg c 37 deg Machine Structure (Unable to modify) 250 mm. AC Servo Motor Linear guide & Rail
