Neptun code: 12pW60 1. Calculation task Minimum 8 points must be achieved in this section! D. How much would be the lift

[answerhappygod]

Neptun Code 12pw60 1 Calculation Task Minimum 8 Points Must Be Achieved In This Section D How Much Would Be The Lift 1 (103.86 KiB) Viewed 14 times

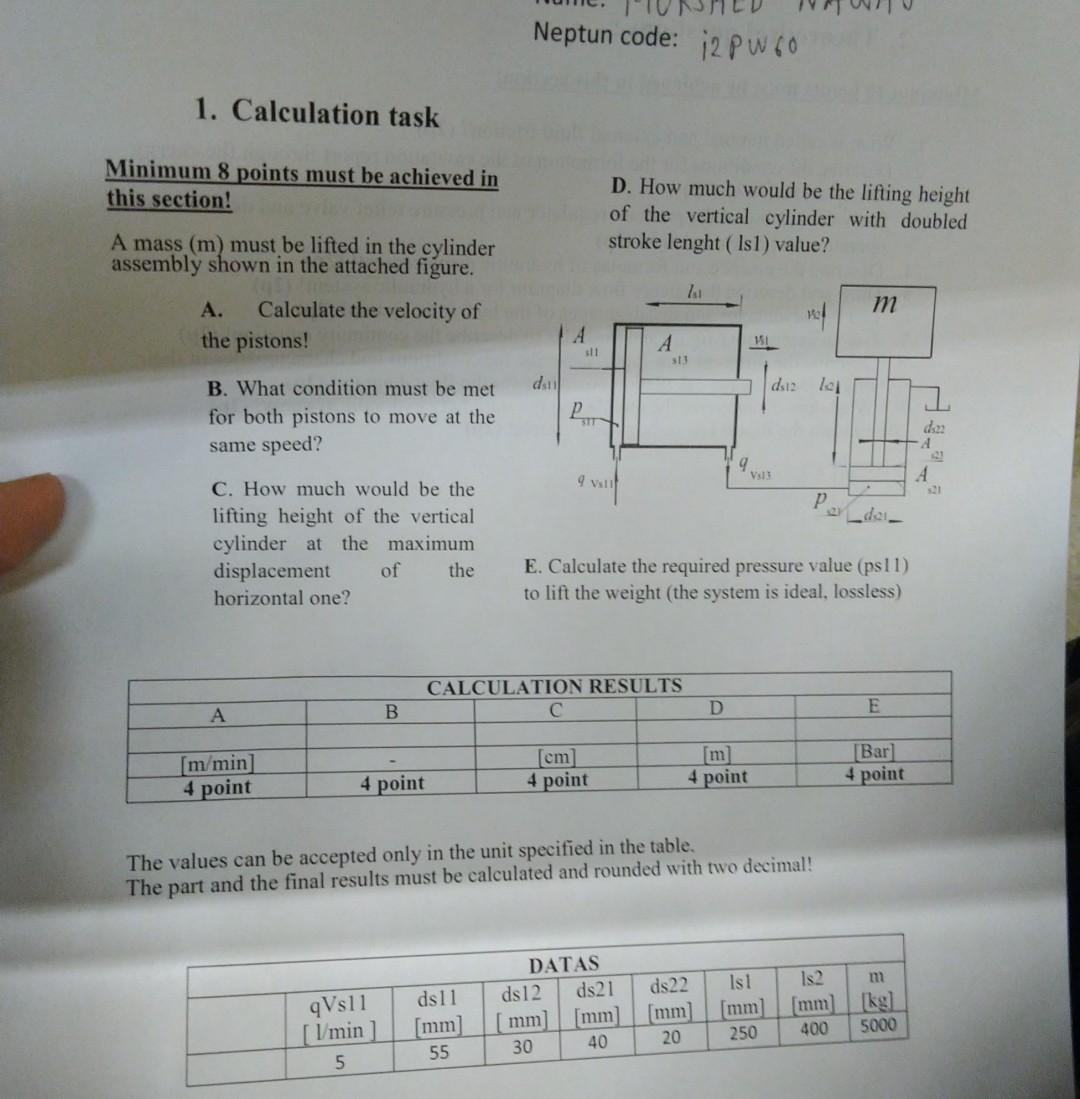

Neptun code: 12pW60 1. Calculation task Minimum 8 points must be achieved in this section! D. How much would be the lifting height of the vertical cylinder with doubled stroke lenght (Isl) value? A mass (m) must be lifted in the cylinder assembly shown in the attached figure. A. Calculate the velocity of the pistons! 71 m A sli 151 A st ds12 lei B. What condition must be met for both pistons to move at the same speed? dul р d:22 9 vul A р C. How much would be the lifting height of the vertical cylinder at the maximum displacement of the horizontal one? E. Calculate the required pressure value (ps11) to lift the weight (the system is ideal, lossless) CALCULATION RESULTS с B D A E [m/min 4 point [cm] 4 point [m] 4 point Bar) 4 point 4 point The values can be accepted only in the unit specified in the table. The part and the final results must be calculated and rounded with two decimal! וון qVs11 [ 1/min] 5 ds11 [mm] 55 DATAS ds12 ds21 [mm] [mm] 30 40 ds22 [mm] 20 Is1 Is2 [mm] [mm] 250 400 kg) 5000
