Please draw the rotating direction of worm and worm wheel, and draw the direction of component force 例1:标出各图中未注明的蜗杆或蜗轮的转

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Please draw the rotating direction of worm and worm wheel, and draw the direction of component force 例1:标出各图中未注明的蜗杆或蜗轮的转

Post by answerhappygod »

1
1 (32.78 KiB) Viewed 18 times

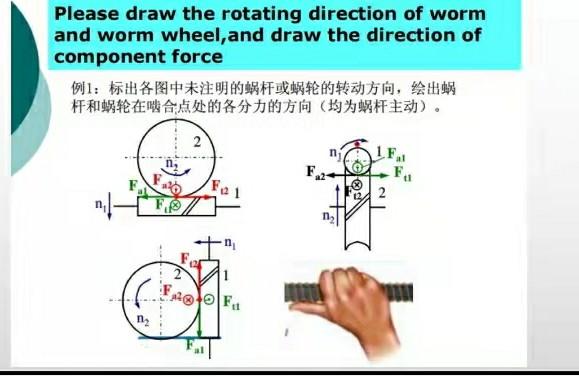

Please draw the rotating direction of worm and worm wheel, and draw the direction of component force 例1:标出各图中未注明的蜗杆或蜗轮的转动方向,绘出蜗 杆和蜗轮在合点处的各分力的方向(均为蜗杆主动)。 LF F- 2 1 aig | Fa
