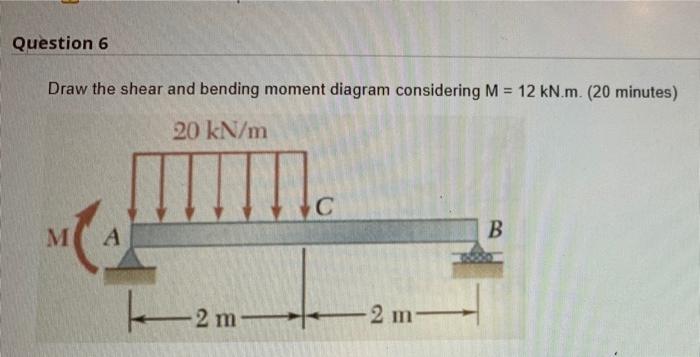

Question 6 Draw the shear and bending moment diagram considering M = 12 kN.m. (20 minutes) 20 kN/m С M А B 2 m 2m 2 m
