3. A line JK 130 mm long has its end J 52 mm in front of VP. The HT of the line is 44 mm in front of VP and its VT is 50

Post by answerhappygod »

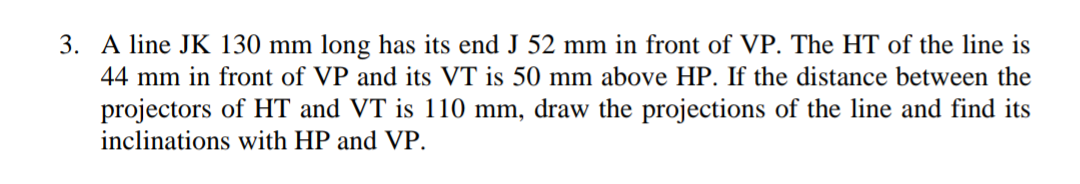

3 A Line Jk 130 Mm Long Has Its End J 52 Mm In Front Of Vp The Ht Of The Line Is 44 Mm In Front Of Vp And Its Vt Is 50 1
3 A Line Jk 130 Mm Long Has Its End J 52 Mm In Front Of Vp The Ht Of The Line Is 44 Mm In Front Of Vp And Its Vt Is 50 1 (79.44 KiB) Viewed 22 times
plz explain through steps also
3. A line JK 130 mm long has its end J 52 mm in front of VP. The HT of the line is 44 mm in front of VP and its VT is 50 mm above HP. If the distance between the projectors of HT and VT is 110 mm, draw the projections of the line and find its inclinations with HP and VP.
