4. A straight line MN is inclined at 30° to HP while its top view is inclined at 40° to the reference line. The end M is

Post by answerhappygod »

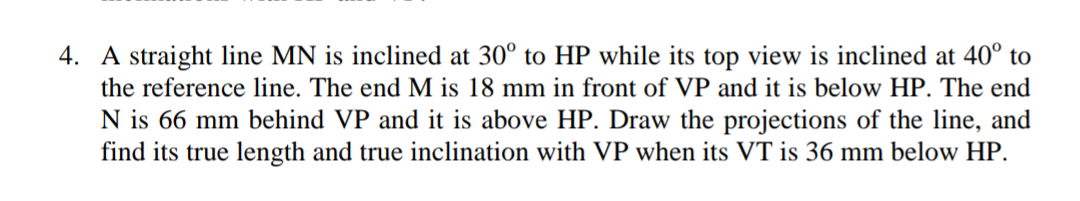

4 A Straight Line Mn Is Inclined At 30 To Hp While Its Top View Is Inclined At 40 To The Reference Line The End M Is 1
4 A Straight Line Mn Is Inclined At 30 To Hp While Its Top View Is Inclined At 40 To The Reference Line The End M Is 1 (97.42 KiB) Viewed 13 times
plz explain with steps also
4. A straight line MN is inclined at 30° to HP while its top view is inclined at 40° to the reference line. The end M is 18 mm in front of VP and it is below HP. The end N is 66 mm behind VP and it is above HP. Draw the projections of the line, and find its true length and true inclination with VP when its VT is 36 mm below HP.
