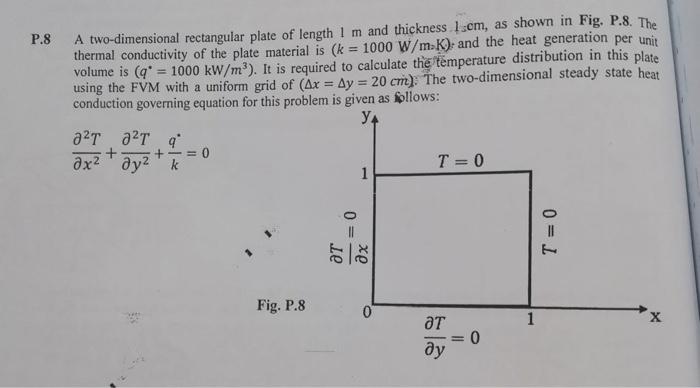

P.8 A two-dimensional rectangular plate of length 1 m and thickness l.om, as shown in Fig. P.8. The thermal conductivity of the plate material is (k = 1000 W/mK), and the heat generation per unit volume is (q* = 1000 kW/m”). It is required to calculate the temperature distribution in this plate using the FVM with a uniform grid of (Ax = Ay = 20 cm): The two-dimensional steady state heat conduction governing equation for this problem is given as follows: YA a27a2T + = 0 дх2 ду? k T=0 1 + 1 = 0 T= 0 Fig. P.8 0 1 x х ОТ ду 0
