Problem 06.143 - Bar pinned at point and disk Bar AB is pinned to the fixed support at A, and the pin Pis fixed to the d

[answerhappygod]

Problem 06 143 Bar Pinned At Point And Disk Bar Ab Is Pinned To The Fixed Support At A And The Pin Pis Fixed To The D 1 (152.71 KiB) Viewed 12 times

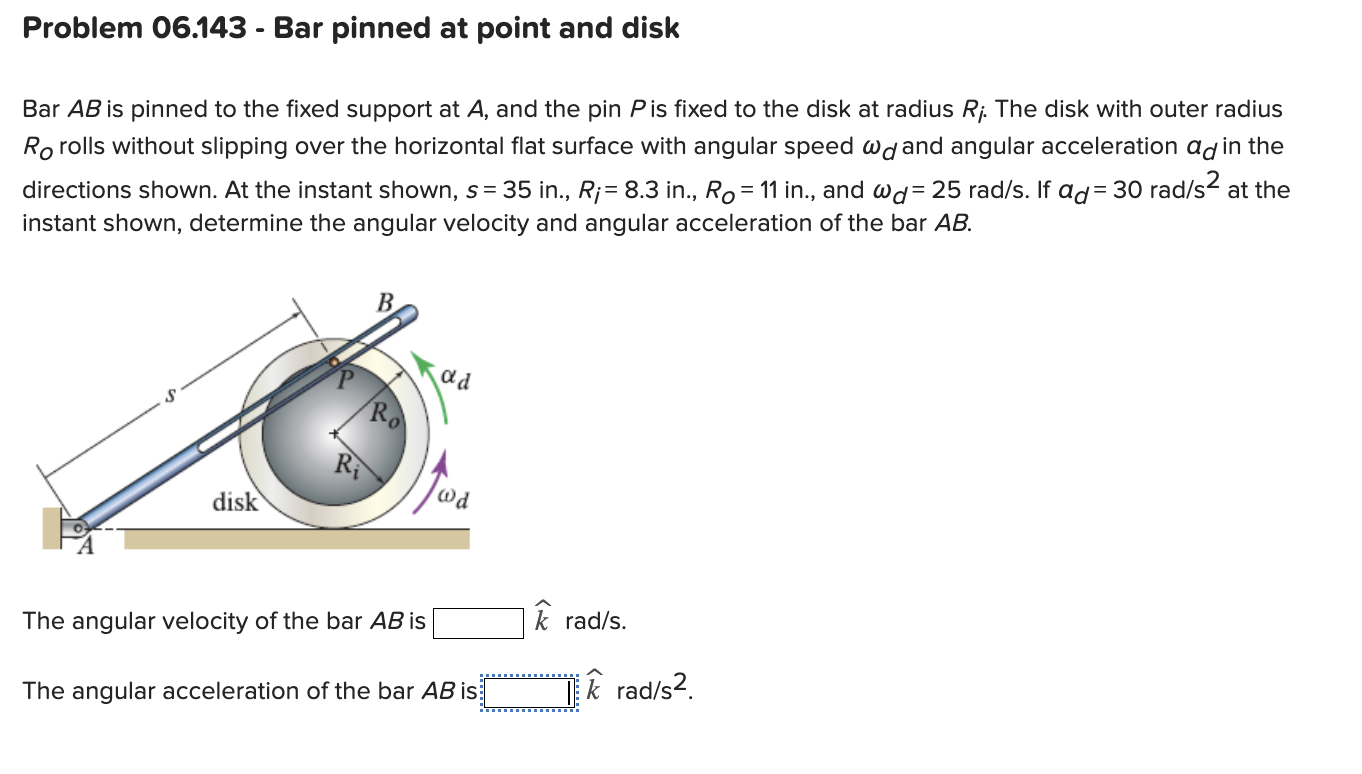

Problem 06.143 - Bar pinned at point and disk Bar AB is pinned to the fixed support at A, and the pin Pis fixed to the disk at radius Ri. The disk with outer radius Rorolls without slipping over the horizontal flat surface with angular speed wd and angular acceleration ad in the directions shown. At the instant shown, s= 35 in., R;= 8.3 in., Ro= 11 in., and Wd= 25 rad/s. If ad= 30 rad/s2 at the instant shown, determine the angular velocity and angular acceleration of the bar AB. В. ad RO Ri disk The angular velocity of the bar AB is Î rad/s. The angular acceleration of the bar AB is Ti k rad/s2
