given AJ=BJ= 2m theta=45degrees BC= 4m P=50N Determine the internal forces in this member at point J.

Post by answerhappygod »

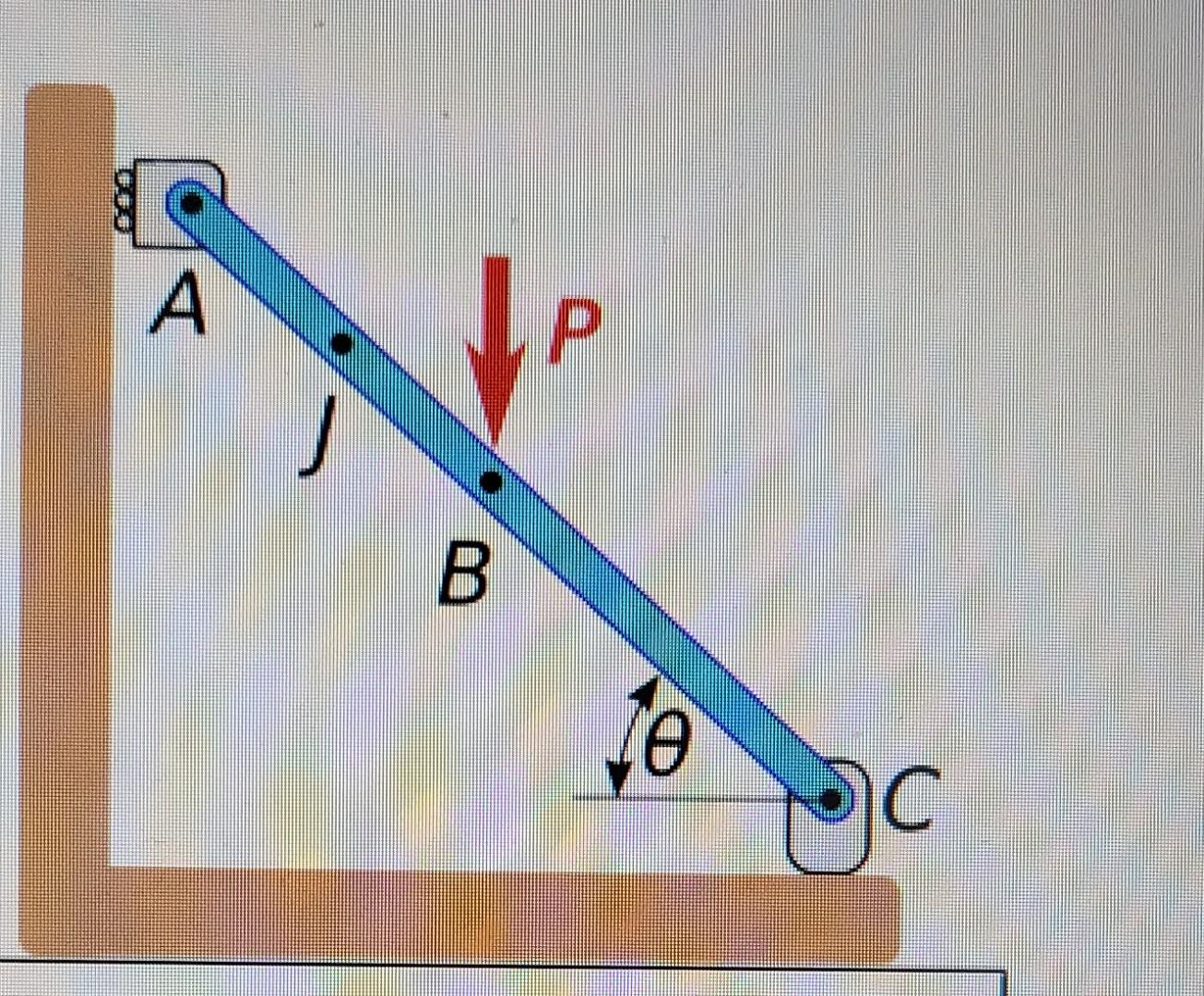

given
AJ=BJ= 2m
theta=45degrees
BC= 4m
P=50N
Determine the internal forces in this member at point J.
Given Aj Bj 2m Theta 45degrees Bc 4m P 50n Determine The Internal Forces In This Member At Point J 1
Given Aj Bj 2m Theta 45degrees Bc 4m P 50n Determine The Internal Forces In This Member At Point J 1 (324.69 KiB) Viewed 11 times
А LP B 10 C C
