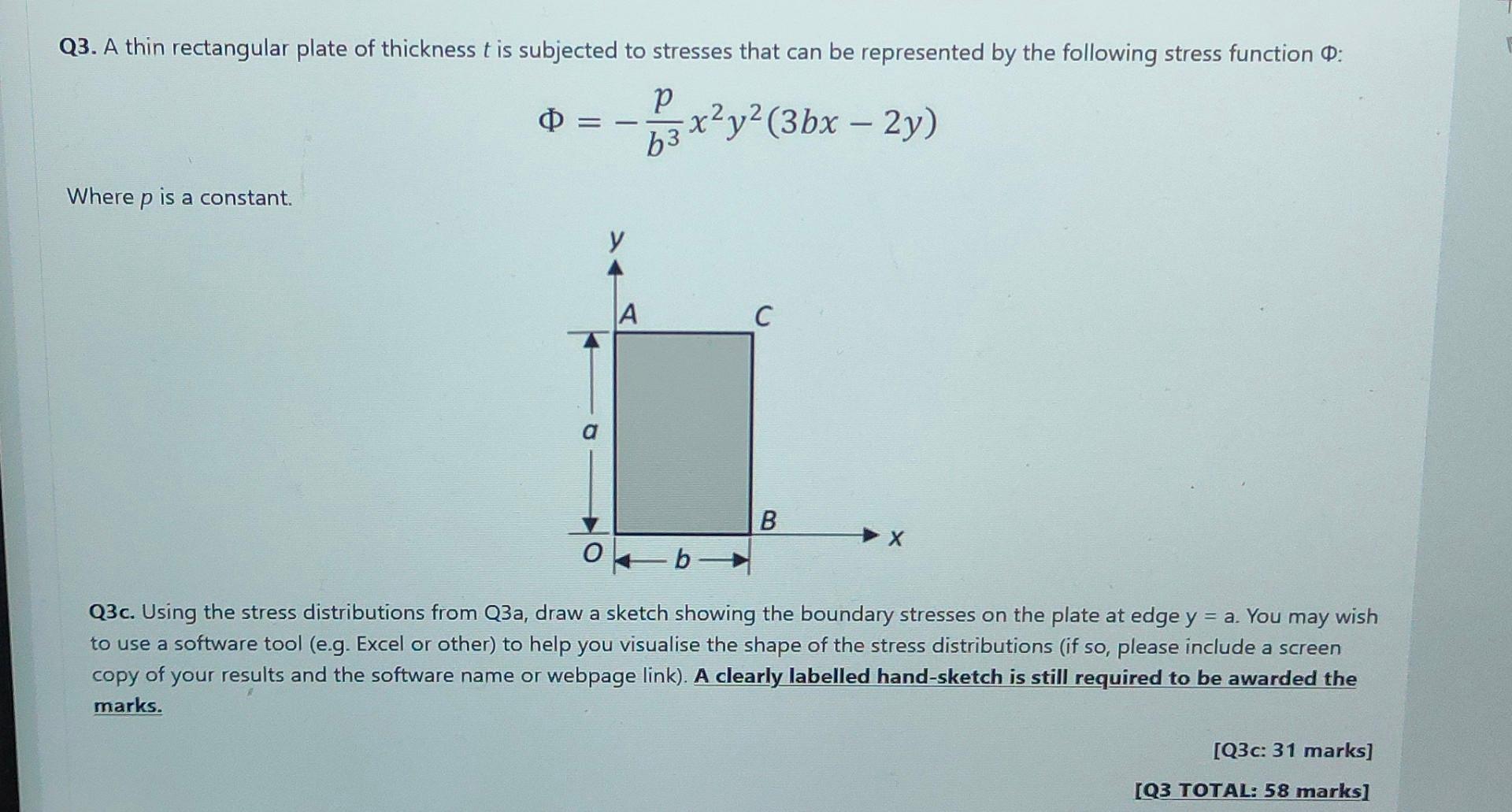

Q3. A thin rectangular plate of thickness t is subjected to stresses that can be represented by the following stress function : р Ф 63x4y(3bx – 2y) ? Where p is a constant. y A С B Ok b Q3c. Using the stress distributions from Q3a, draw a sketch showing the boundary stresses on the plate at edge y = a. You may wish to use a software tool (e.g. Excel or other) to help you visualise the shape of the stress distributions (if so, please include a screen copy of your results and the software name or webpage link). A clearly labelled hand-sketch is still required to be awarded the marks. [Q3c: 31 marks] [Q3 TOTAL: 58 marks]
