Problem 3 For the two dimensional steady state heat transfer problem, the problem is depicted as shown in the below figu

[answerhappygod]

Problem 3 For The Two Dimensional Steady State Heat Transfer Problem The Problem Is Depicted As Shown In The Below Figu 1 (32.17 KiB) Viewed 11 times

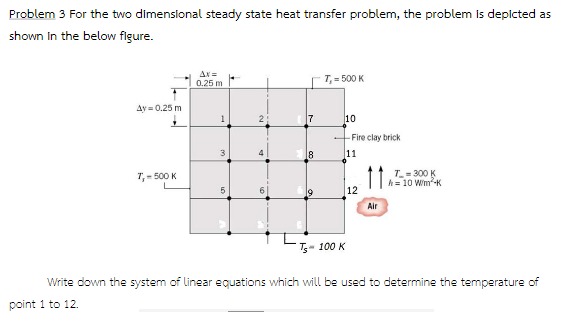

Problem 3 For the two dimensional steady state heat transfer problem, the problem is depicted as shown in the below figure. 0.25 m 7,500 K Ay=0.25 m 1 2 7 10 3 4 8 Fire clay brick 11 T_= 300 K h = 10 W/m2K 12 7,- 500K 5 Air Ts-100 K Write down the system of Linear equations which will be used to determine the temperature of point 1 to 12
