Q2a. A plate having height a mm and width b mm is exposed to stresses that create uniform strains ex Ey, and Yxy (micros

Post by answerhappygod »

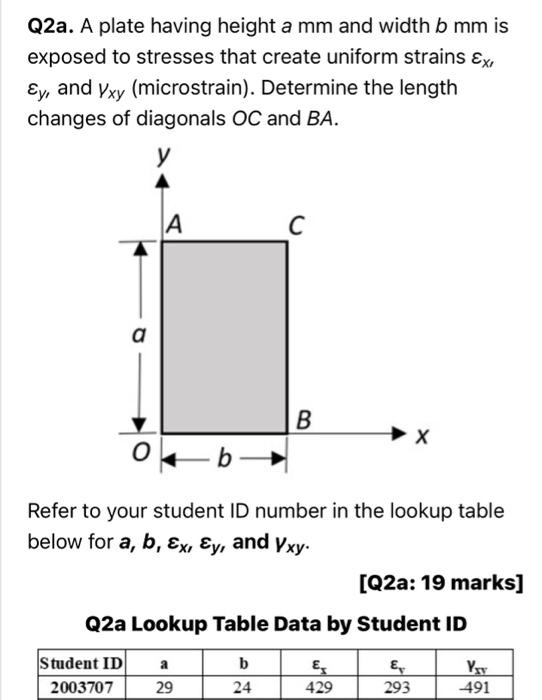

Q2a A Plate Having Height A Mm And Width B Mm Is Exposed To Stresses That Create Uniform Strains Ex Ey And Yxy Micros 1
Q2a A Plate Having Height A Mm And Width B Mm Is Exposed To Stresses That Create Uniform Strains Ex Ey And Yxy Micros 1 (40.93 KiB) Viewed 14 times
Q2a. A plate having height a mm and width b mm is exposed to stresses that create uniform strains ex Ey, and Yxy (microstrain). Determine the length changes of diagonals OC and BA. y А С a B х o Refer to your student ID number in the lookup table below for a, b, Ex, Ey, and Yxy. [Q2a: 19 marks] Q2a Lookup Table Data by Student ID a Student ID 2003707 29 b 24 E, 429 293 491
