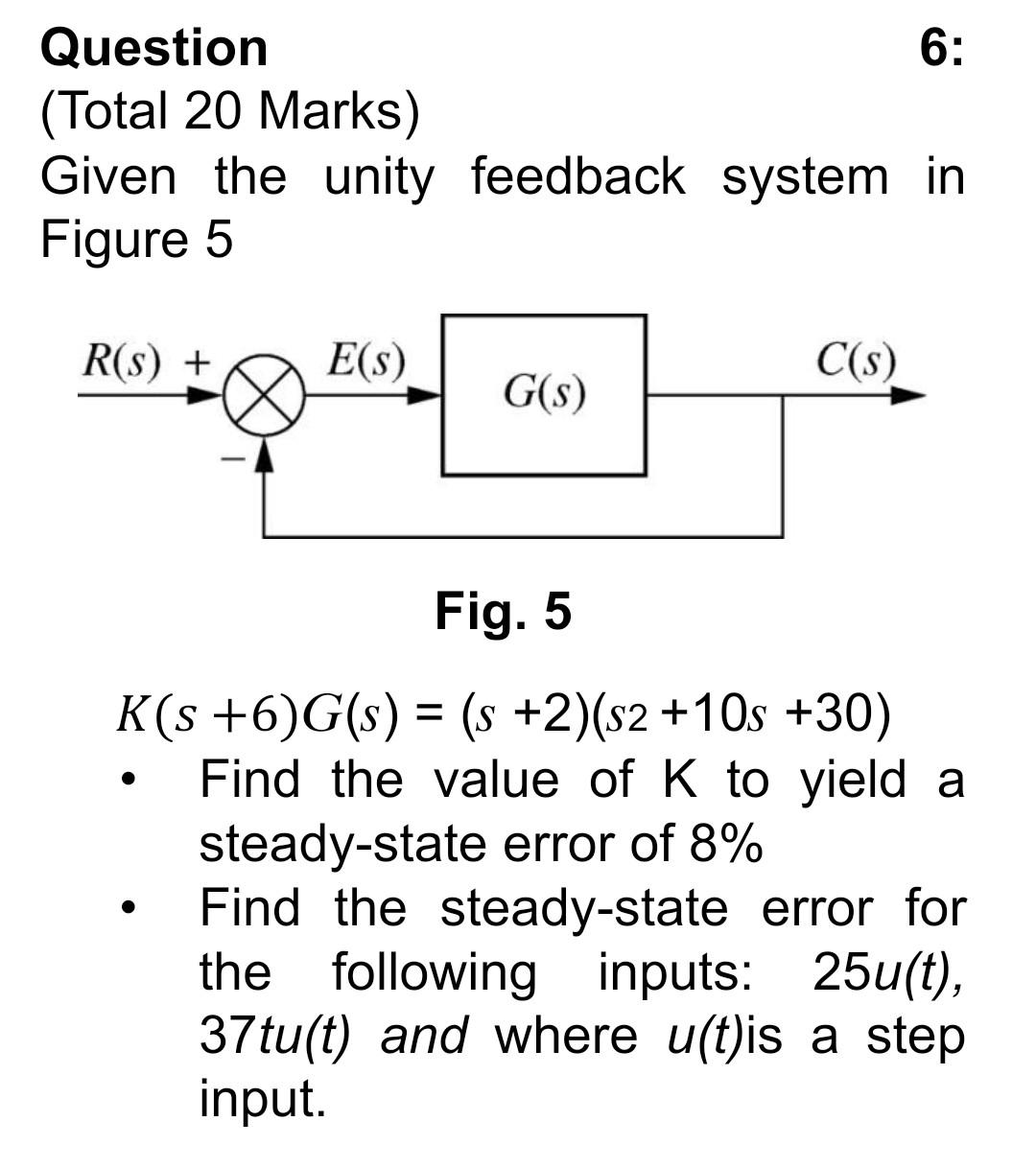

6 Question Total 20 Marks Given The Unity Feedback System In Figure 5 R S E S C S G S Fig 5 K S 6 G S S 1 (112.57 KiB) Viewed 26 times
please solve each parts of this question clearly and perfectly with explanation.
I need solution within 48 hours from now.
I will sure like solution and will rate up the work. thanks
6: Question (Total 20 Marks) Given the unity feedback system in Figure 5 R(S) + E(S) C(s) G(S) Fig. 5 = K(s +6)G(s) = (s +2)(s2 +10s +30) Find the value of K to yield a steady-state error of 8% Find the steady-state error for the following inputs: 25u(t), ( 37tu(t) and where u(t)is a step input.
