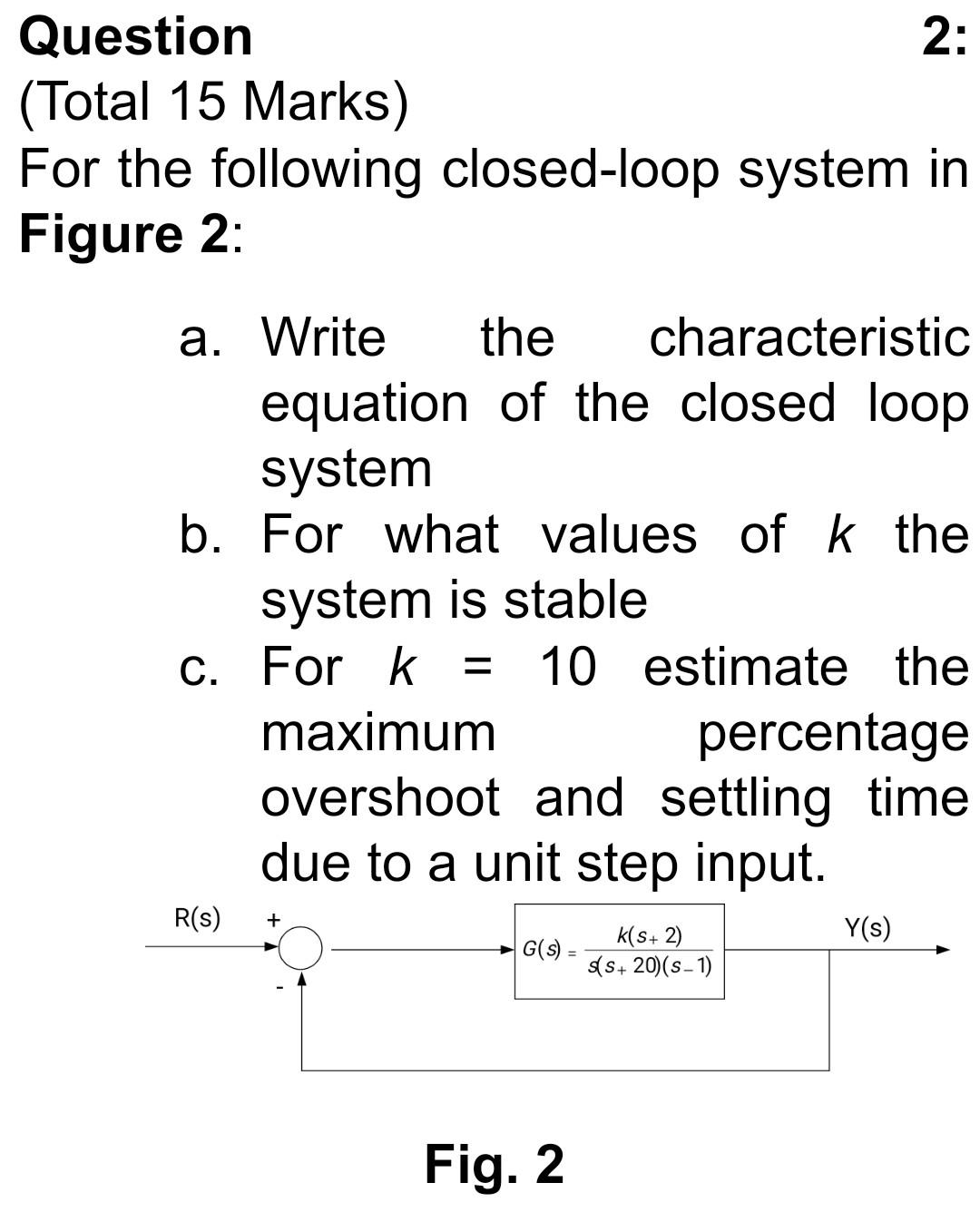

Question 2 Total 15 Marks For The Following Closed Loop System In Figure 2 A Write The Characteristic Equation Of T 1 (125.44 KiB) Viewed 16 times
please solve each parts of this question completely and perfectly with explanation
I need solution within 48 hours from now.
I will sure like solution and will rate up the work. thanks Question 2: (Total 15 Marks) For the following closed-loop system in Figure 2: a. Write the characteristic equation of the closed loop system b. For what values of k the system is stable c. For k = 10 estimate the maximum percentage overshoot and settling time due to a unit step input. R(s) + Y(s) G(s) = k(s+ 2) (S+20)(S-1) Fig. 2
