4) For the system below, a) Find the transfer function for the disturbance input response. b) Use Matlab to create a Bod

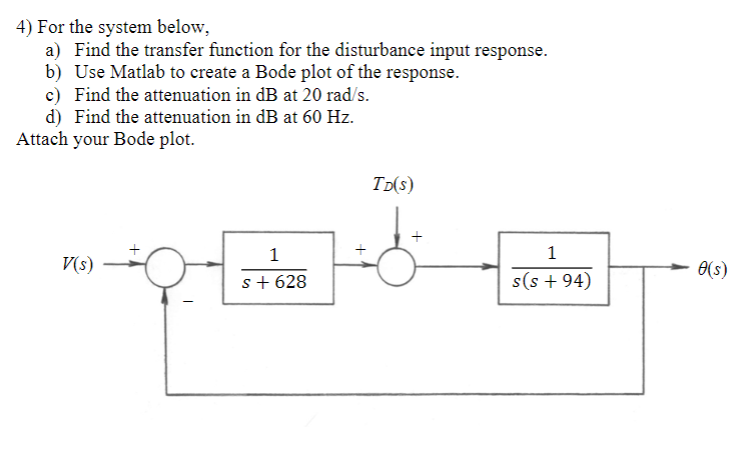

4) For the system below, a) Find the transfer function for the disturbance input response. b) Use Matlab to create a Bode plot of the response. c) Find the attenuation in dB at 20 rad/s. d) Find the attenuation in dB at 60 Hz. Attach your Bode plot. TD(S) + V(s) 1 s +628 1 s(s +94) O(S)
