PROBLEM TWO [4+4+7=15 points] Rod AB and BC has an angular motion as shown below. The member AB is rotating with @AB=3 r

[answerhappygod]

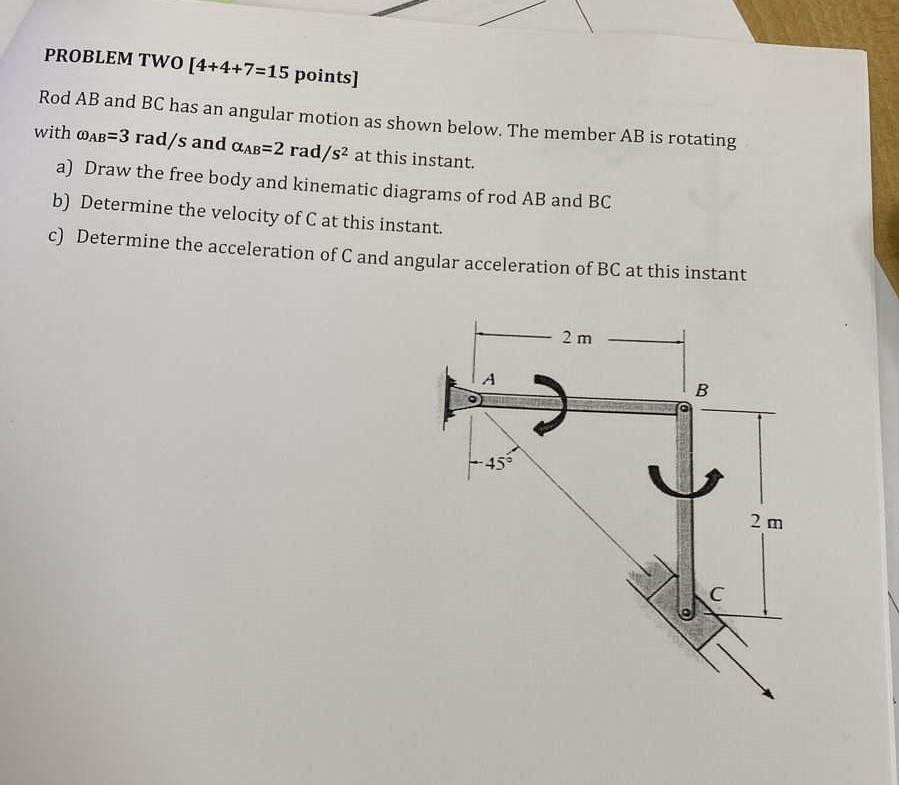

Problem Two 4 4 7 15 Points Rod Ab And Bc Has An Angular Motion As Shown Below The Member Ab Is Rotating With Ab 3 R 1 (52.97 KiB) Viewed 9 times

PROBLEM TWO [4+4+7=15 points] Rod AB and BC has an angular motion as shown below. The member AB is rotating with @AB=3 rad/s and aab=2 rad/s2 at this instant. a) Draw the free body and kinematic diagrams of rod AB and BC b) Determine the velocity of C at this instant. c) Determine the acceleration of C and angular acceleration of BC at this instant 2 m A B 2 m C
