[2+4+4=10 points] A 75 kg wheel has a radius of gyration about its mass center of kg =375 mm. It is subjected to a torqu

[answerhappygod]

2 4 4 10 Points A 75 Kg Wheel Has A Radius Of Gyration About Its Mass Center Of Kg 375 Mm It Is Subjected To A Torqu 1 (49.61 KiB) Viewed 16 times

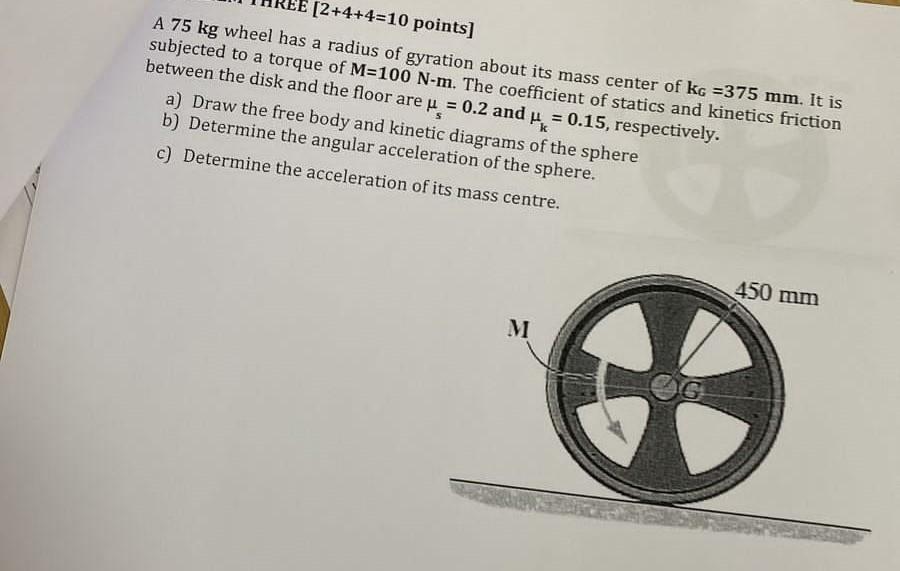

[2+4+4=10 points] A 75 kg wheel has a radius of gyration about its mass center of kg =375 mm. It is subjected to a torque of M=100 N-m. The coefficient of statics and kinetics friction between the disk and the floor are g = 0.2 and 4 = 0.15, respectively. a) Draw the free body and kinetic diagrams of the sphere b) Determine the angular acceleration of the sphere. c) Determine the acceleration of its mass centre. 450 mm M
