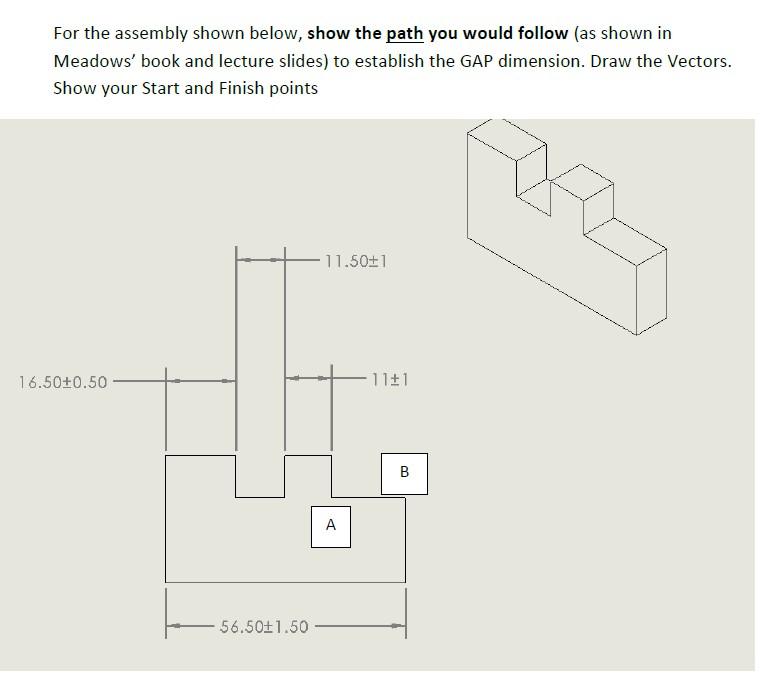

For the assembly shown below, show the path you would follow (as shown in Meadows' book and lecture slides) to establish the GAP dimension. Draw the Vectors. Show your Start and Finish points 11.50+1 16.50+0.50 111 B А - 56.50+1.50

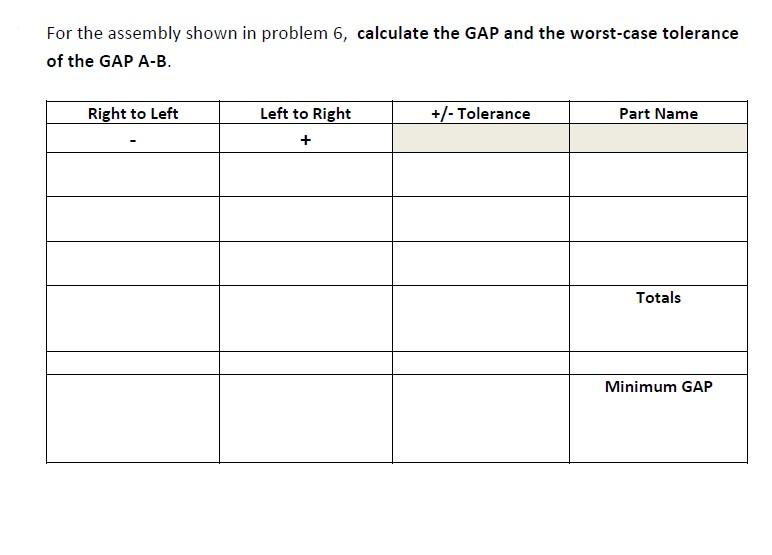

For the assembly shown in problem 6, calculate the GAP and the worst-case tolerance of the GAP A-B. Right to Left +/- Tolerance Part Name Left to Right + Totals Minimum GAP
