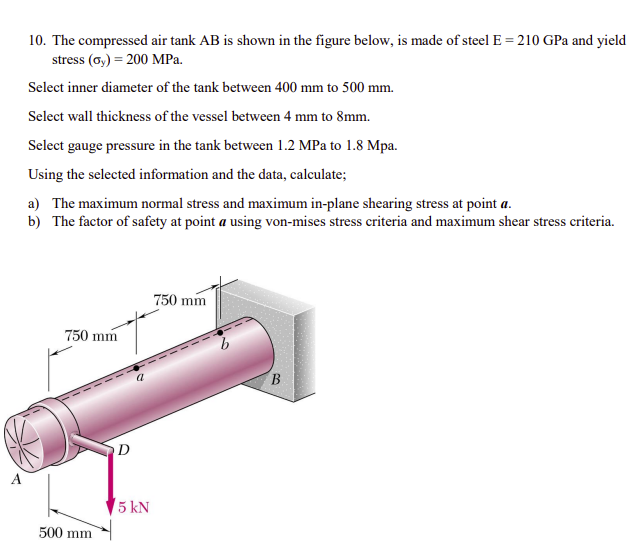

10. The compressed air tank AB is shown in the figure below, is made of steel E = 210 GPa and yield stress (cy) = 200 MPa. Select inner diameter of the tank between 400 mm to 500 mm. Select wall thickness of the vessel between 4 mm to 8mm. Select gauge pressure in the tank between 1.2 MPa to 1.8 Mpa. Using the selected information and the data, calculate; a) The maximum normal stress and maximum in-plane shearing stress at point a. b) The factor of safety at point a using von-mises stress criteria and maximum shear stress criteria. 750 mm 750 mm B D 5 kN 500 mm
