A flanged wooden shape is used to support the loads shown on the beam. The dimensions of the shape are shown in the seco

[answerhappygod]

A Flanged Wooden Shape Is Used To Support The Loads Shown On The Beam The Dimensions Of The Shape Are Shown In The Seco 1 (53.65 KiB) Viewed 15 times

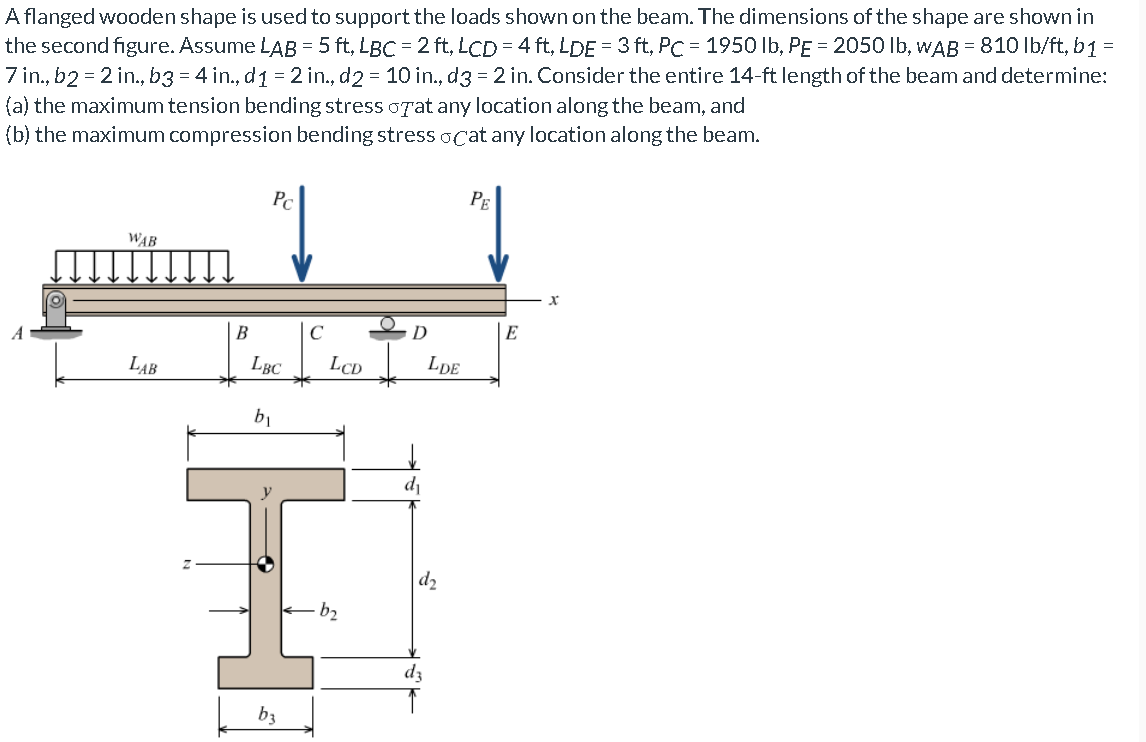

A flanged wooden shape is used to support the loads shown on the beam. The dimensions of the shape are shown in the second figure. Assume LAB = 5 ft. LBC = 2 ft. LCD = 4 ft. LDE = 3 ft, Pc = 1950 lb, PE = 2050 lb, WAB = 810 lb/ft, b1 = 7 in., b2 = 2 in., b3 = 4 in., d 1 = 2 in., d2 = 10 in., d3 = 2 in. Consider the entire 14-ft length of the beam and determine: (a) the maximum tension bending stress otat any location along the beam, and (b) the maximum compression bending stress ocat any location along the beam. Pc PE WAB . 2 X B с D E LAB LBC LCD LDE bi di d2 -b2 d b3
