(50 pts.) An A36 steel W10 x 39 beam supports the applied loads shown. Ignore stress concentrations. a) Find the reactio

[answerhappygod]

50 Pts An A36 Steel W10 X 39 Beam Supports The Applied Loads Shown Ignore Stress Concentrations A Find The Reactio 1 (69.38 KiB) Viewed 14 times

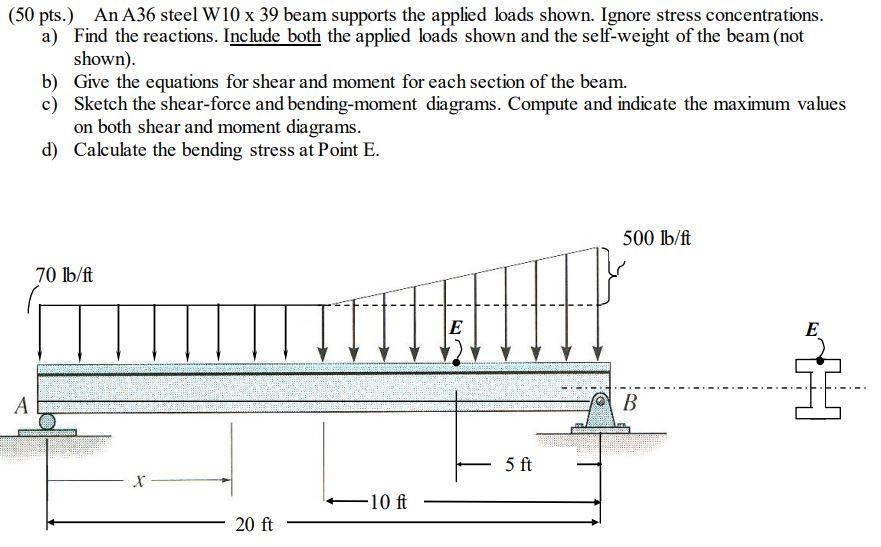

(50 pts.) An A36 steel W10 x 39 beam supports the applied loads shown. Ignore stress concentrations. a) Find the reactions. Include both the applied loads shown and the self-weight of the beam (not shown). b) Give the equations for shear and moment for each section of the beam. c) Sketch the shear-force and bending-moment diagrams. Compute and indicate the maximum values on both shear and moment diagrams. d) Calculate the bending stress at Point E. 500 lb/ft 70 lb/ft E E I A B 5 ft х -10 ft 20 ft
