1. (Truss Structures) Conduct SVD analysis for the following two 2D structures. - Calculate m and s - Calculate self str

[answerhappygod]

1 Truss Structures Conduct Svd Analysis For The Following Two 2d Structures Calculate M And S Calculate Self Str 1 (33.87 KiB) Viewed 11 times

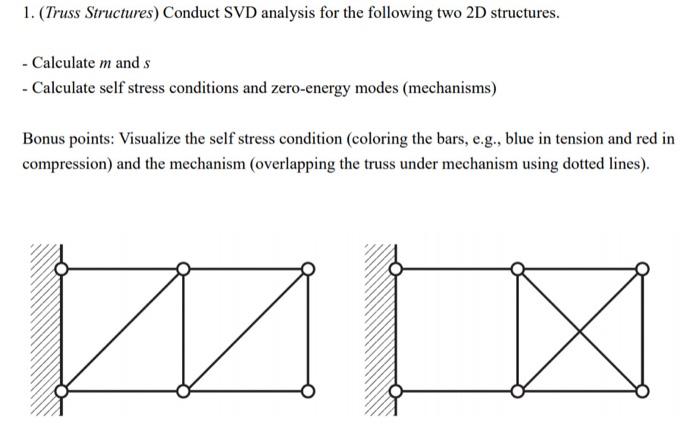

1. (Truss Structures) Conduct SVD analysis for the following two 2D structures. - Calculate m and s - Calculate self stress conditions and zero-energy modes (mechanisms) Bonus points: Visualize the self stress condition (coloring the bars, e.g., blue in tension and red in compression) and the mechanism (overlapping the truss under mechanism using dotted lines).
