5. For the Aluminum truss (E= 70 GPa) shown in Fig: Q5, determine the vertical displacement of the truss at joint B. The

Post by answerhappygod »

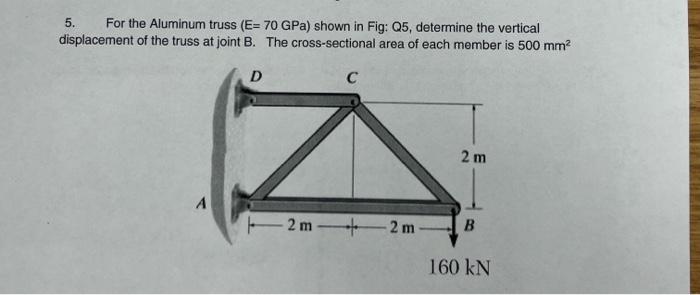

5 For The Aluminum Truss E 70 Gpa Shown In Fig Q5 Determine The Vertical Displacement Of The Truss At Joint B The 1
5 For The Aluminum Truss E 70 Gpa Shown In Fig Q5 Determine The Vertical Displacement Of The Truss At Joint B The 1 (22.56 KiB) Viewed 23 times
5. For the Aluminum truss (E= 70 GPa) shown in Fig: Q5, determine the vertical displacement of the truss at joint B. The cross-sectional area of each member is 500 mm D с 2 m A 2m2m B 160 KN
