plz give explaination through steps also

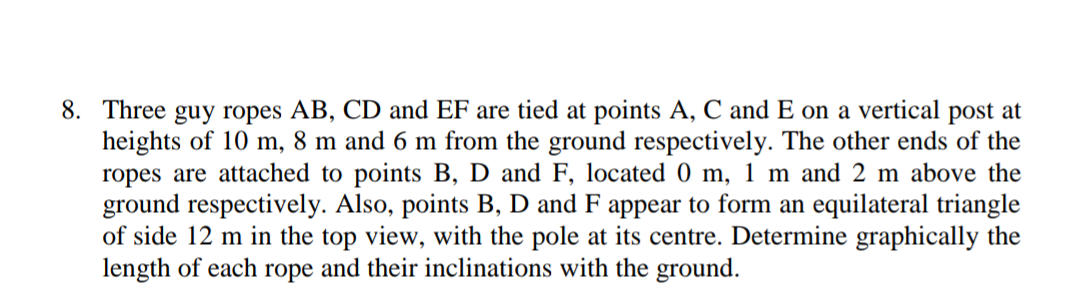

8. Three guy ropes AB, CD and EF are tied at points A, C and E on a vertical post at heights of 10 m, 8 m and 6 m from the ground respectively. The other ends of the ropes are attached to points B, D and F, located 0 m, 1 m and 2 m above the ground respectively. Also, points B, D and F appear to form an equilateral triangle of side 12 m in the top view, with the pole at its centre. Determine graphically the length of each rope and their inclinations with the ground.
