Balance the next beam, draw the shear and momentum diagrams. Calculate the normal maximum stresses at tension and compre

Post by answerhappygod »

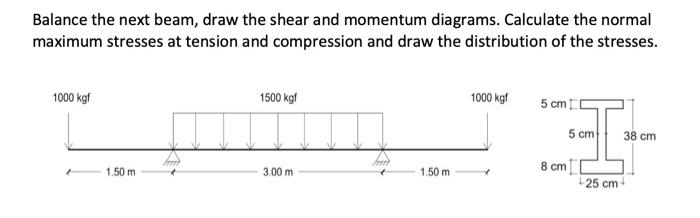

Balance The Next Beam Draw The Shear And Momentum Diagrams Calculate The Normal Maximum Stresses At Tension And Compre 1
Balance The Next Beam Draw The Shear And Momentum Diagrams Calculate The Normal Maximum Stresses At Tension And Compre 1 (18.47 KiB) Viewed 10 times
Balance the next beam, draw the shear and momentum diagrams. Calculate the normal maximum stresses at tension and compression and draw the distribution of the stresses. 1000 kgf 1500 kgf 1000 kgf 5 cm LLL 5 cm 38 cm 1,50 m 3.00 m 150 m 8 cm +25 cm
