1. Find the efficiency and the net power output of the following cycle. Pump and turbine isentropic efficiencies are 70%

[answerhappygod]

1 Find The Efficiency And The Net Power Output Of The Following Cycle Pump And Turbine Isentropic Efficiencies Are 70 1 (46.62 KiB) Viewed 14 times

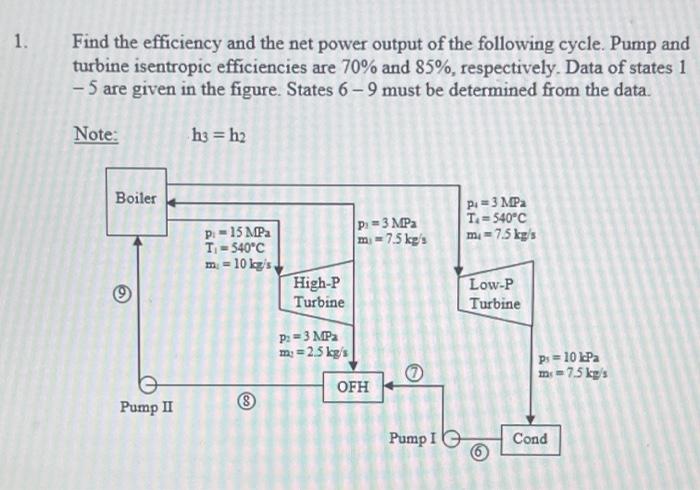

1. Find the efficiency and the net power output of the following cycle. Pump and turbine isentropic efficiencies are 70% and 85%, respectively. Data of states 1 - 5 are given in the figure. States 6-9 must be determined from the data. Note: h3 = h2 Boiler p. = 3 MP T = 540°C mi-7.5 kg's P: = 3 MP m=7.5 kg's p = 15MPa T = 540°C m = 10kg's 9 High-P Turbine Low-P Turbine p=3 MP m = 2.5 kg's ps = 10 Pa me = 7.5 kp's OFH Pump II Pump Ile Cond
