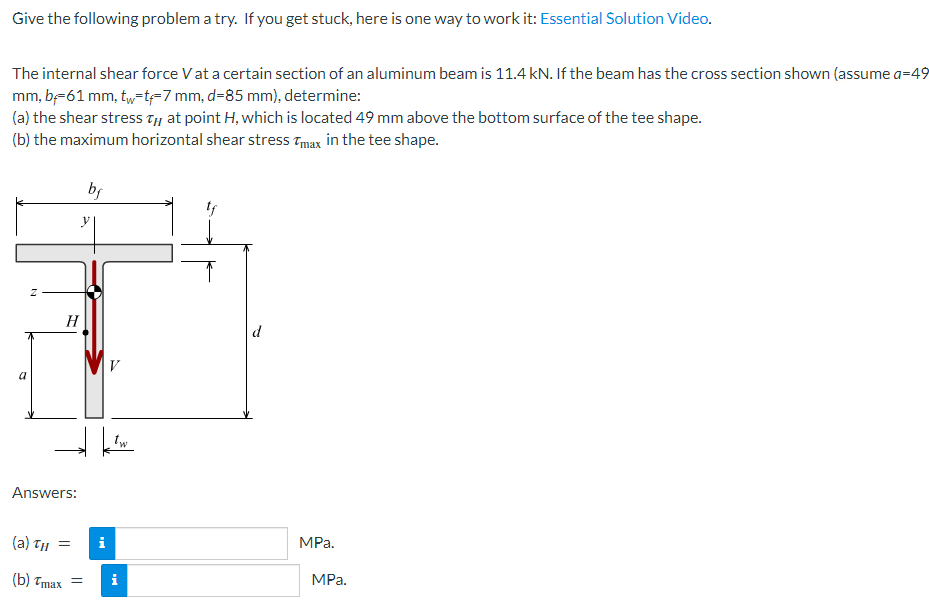

Give the following problem a try. If you get stuck, here is one way to work it: Essential Solution Video. The internal shear force Vat a certain section of an aluminum beam is 11.4 kN. If the beam has the cross section shown (assume a=49 mm, b=61 mm, tw=t=7 mm, d=85 mm), determine: (a) the shear stress that point H, which is located 49 mm above the bottom surface of the tee shape. (b) the maximum horizontal shear stress Tmax in the tee shape. bi Z H d V a Answers: (a) TH = i MPa. (b) Tmax = i MPa.
