a) A frame ABC is supported in part by cable DBE that passes through a frictionless ring at Bas shown in Figure 1. Knowi

[answerhappygod]

A A Frame Abc Is Supported In Part By Cable Dbe That Passes Through A Frictionless Ring At Bas Shown In Figure 1 Knowi 1 (38.57 KiB) Viewed 11 times

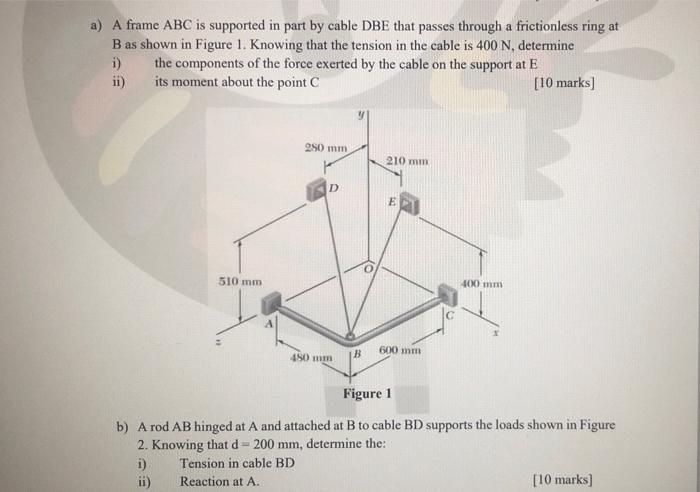

a) A frame ABC is supported in part by cable DBE that passes through a frictionless ring at Bas shown in Figure 1. Knowing that the tension in the cable is 400 N, determine i) the components of the force exerted by the cable on the support at E ii) its moment about the point C [10 marks] OSO mm 210 mm D E 510 mm 400 mm С B 600 mm 450 mm Figure 1 b) A rod AB hinged at A and attached at B to cable BD supports the loads shown in Figure 2. Knowing that d - 200 mm, determine the: i) Tension in cable BD ii) Reaction at A. [10 marks]
