A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 10-mm-diame

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 10-mm-diame

Post by answerhappygod »

A Wooden Beam Is Fabricated By Bolting Together Three Members The Cross Sectional Dimensions Are Shown The 10 Mm Diame 1
A Wooden Beam Is Fabricated By Bolting Together Three Members The Cross Sectional Dimensions Are Shown The 10 Mm Diame 1 (67.62 KiB) Viewed 9 times

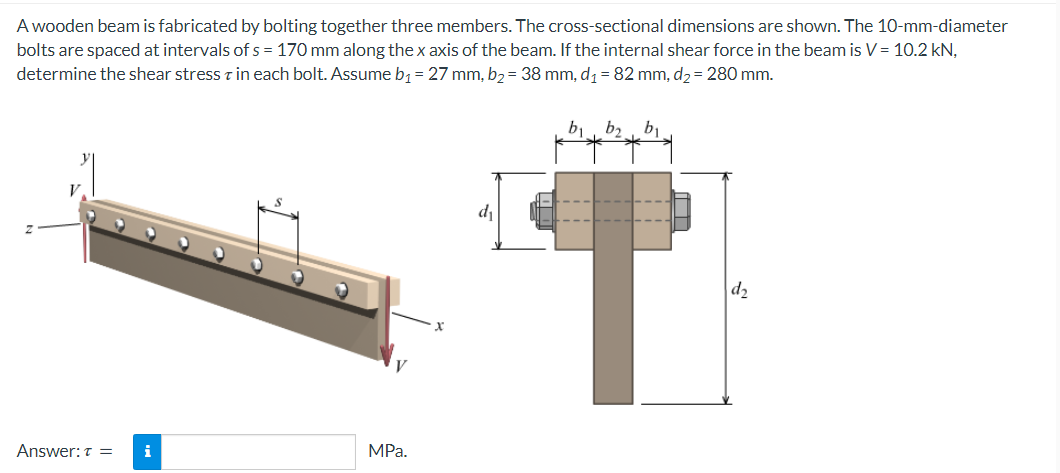

A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 10-mm-diameter bolts are spaced at intervals of s = 170 mm along the x axis of the beam. If the internal shear force in the beam is V = 10.2 kN, determine the shear stress t in each bolt. Assume ba= 27 mm, b2 = 38 mm, da = 82 mm, da = 280 mm. bi b2 d d2 Answer: t = i MPa.
