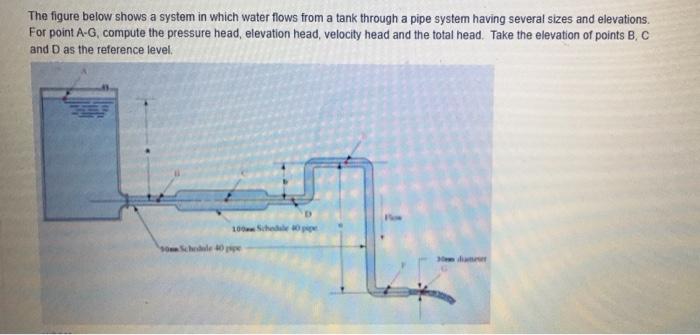

The figure below shows a system in which water flows from a tank through a pipe system having several sizes and elevations. For point A-G, compute the pressure head, elevation head, velocity head and the total head. Take the elevation of points B, C and D as the reference level. 100 Schedule Schle

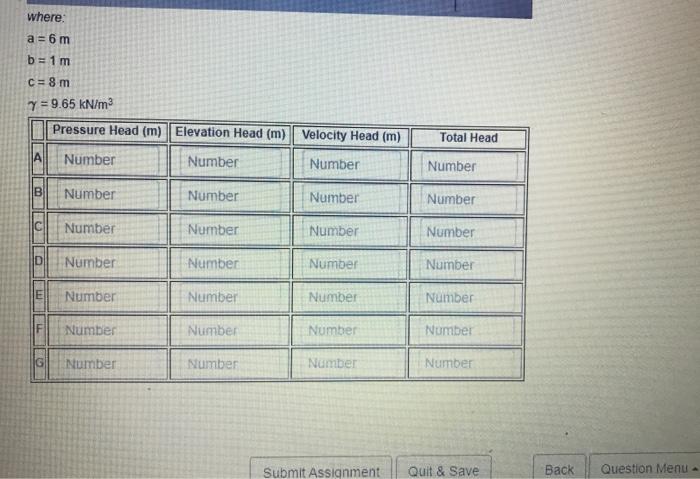

where. a = 6 m b = 1 m C = 8 m y = 9.65 kN/m Pressure Head (m) Elevation Head (m) Velocity Head (m) A Number Number Number Total Head Number B Number Number Number Number C Number Number Number Number D Number Number Number Number E Number Number Number Number F Number Number Number Number Number Number Number Number Submit Assignment Quit & Save Back Question Menu
