a 2) The diagram shown below is a torque angle diagram for a certain machine. The speed of the shaft must be maintained

Post by answerhappygod »

A 2 The Diagram Shown Below Is A Torque Angle Diagram For A Certain Machine The Speed Of The Shaft Must Be Maintained 1
A 2 The Diagram Shown Below Is A Torque Angle Diagram For A Certain Machine The Speed Of The Shaft Must Be Maintained 1 (49.02 KiB) Viewed 11 times

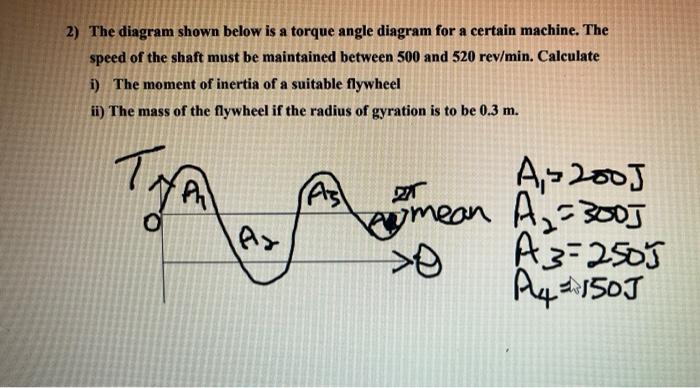

a 2) The diagram shown below is a torque angle diagram for a certain machine. The speed of the shaft must be maintained between 500 and 520 rev/min. Calculate i) The moment of inertia of a suitable flywheel ii) The mass of the flywheel if the radius of gyration is to be 0.3 m. Tym Ash 21 Ax A=200] pot mean A-2003 so A3:2505 A4 = 1501
