A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 6-mm-diamet

Post by answerhappygod »

A Wooden Beam Is Fabricated By Bolting Together Three Members The Cross Sectional Dimensions Are Shown The 6 Mm Diamet 1
A Wooden Beam Is Fabricated By Bolting Together Three Members The Cross Sectional Dimensions Are Shown The 6 Mm Diamet 1 (46.58 KiB) Viewed 15 times

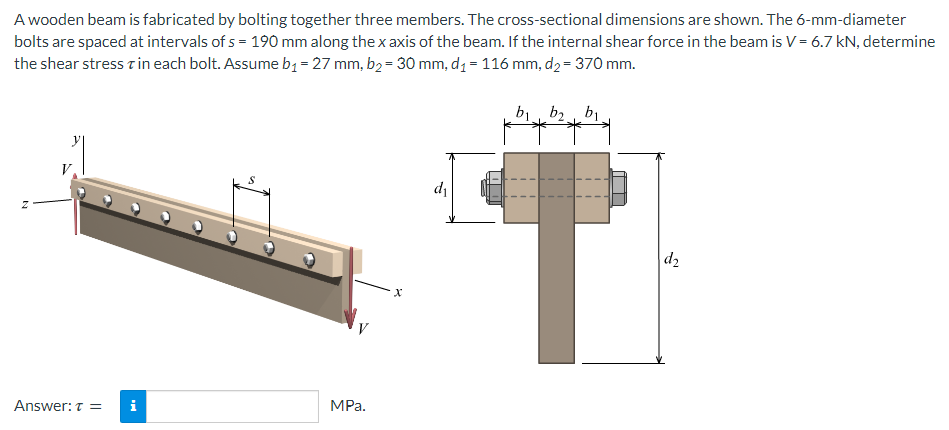

A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 6-mm-diameter bolts are spaced at intervals of s = 190 mm along the x axis of the beam. If the internal shear force in the beam is V = 6.7 kN, determine the shear stress t in each bolt. Assume b1 = 27 mm, b2 = 30 mm, d1 = 116 mm, d2=370 mm. bi, b2b di N d2 x Answer: T = i MPa.
