- A Four Bar Mechanism Is Loaded As Shown In Fig 11 36 Ab Cd 300 Mm Bc 250 Mm Ae Cg 150 Mm Bf 100 Mm Ad 1 (77.7 KiB) Viewed 10 times
A four-bar mechanism is loaded as shown in Fig.11.36. AB = CD = 300 mm. BC = 250 mm, AE = CG= 150 mm, BF = 100 mm, AD =
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A four-bar mechanism is loaded as shown in Fig.11.36. AB = CD = 300 mm. BC = 250 mm, AE = CG= 150 mm, BF = 100 mm, AD =

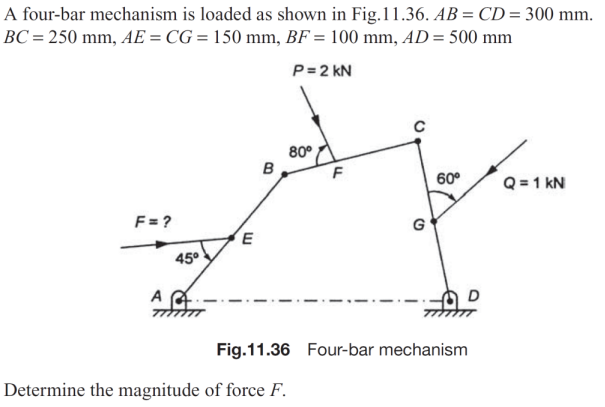

A four-bar mechanism is loaded as shown in Fig.11.36. AB = CD = 300 mm. BC = 250 mm, AE = CG= 150 mm, BF = 100 mm, AD = 500 mm P = 2 KN с 80° B 60° Q = 1 kN F=? E 45° А Fig.11.36 Four-bar mechanism Determine the magnitude of force F.
