A 1.125-in-diameter solid steel shaft supports loads Pa= 220 lb and Po= 320 lb. Assume L1 = 2.4 in., L2 = 5.9 in., and L

[answerhappygod]

A 1 125 In Diameter Solid Steel Shaft Supports Loads Pa 220 Lb And Po 320 Lb Assume L1 2 4 In L2 5 9 In And L 1 (37.59 KiB) Viewed 12 times

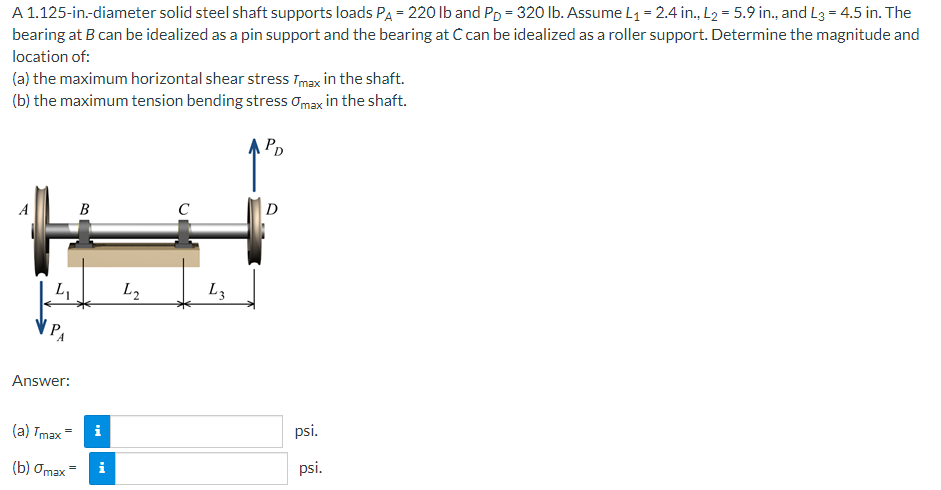

A 1.125-in-diameter solid steel shaft supports loads Pa= 220 lb and Po= 320 lb. Assume L1 = 2.4 in., L2 = 5.9 in., and L3 = 4.5 in. The bearing at B can be idealized as a pin support and the bearing at C can be idealized as a roller support. Determine the magnitude and location of: (a) the maximum horizontal shear stress Tmax in the shaft. (b) the maximum tension bending stress Omax in the shaft. IP А B B с D L L2 LE VPA Answer: (a) Tmax Me i psi. (b) Omax i psi.
