A Riotowe . . . Problem 1 (LAB 4-1.sldprt) Design disk cam profile for a reciprocating, knife-edge follower • Cam displa

[answerhappygod]

A Riotowe Problem 1 Lab 4 1 Sldprt Design Disk Cam Profile For A Reciprocating Knife Edge Follower Cam Displa 1 (69.38 KiB) Viewed 11 times

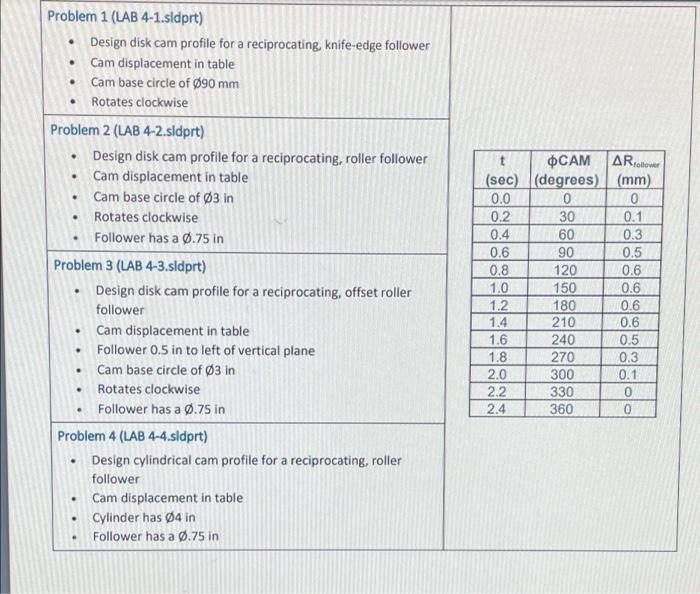

A Riotowe . . . Problem 1 (LAB 4-1.sldprt) Design disk cam profile for a reciprocating, knife-edge follower • Cam displacement in table • Cam base circle of Ø90 mm • Rotates clockwise Problem 2 (LAB 4-2.sldprt) Design disk cam profile for a reciprocating, roller follower Cam displacement in table Cam base circle of 3 in Rotates clockwise Follower has a 0.75 in Problem 3 (LAB 4-3.sldprt) Design disk cam profile for a reciprocating, offset roller follower Cam displacement in table Follower 0.5 in to left of vertical plane Cam base circle of Ø3 in Rotates clockwise Follower has a 0.75 in Problem 4 (LAB 4-4.sldprt) Design cylindrical cam profile for a reciprocating, roller follower Cam displacement in table Cylinder has 4 in Follower has a 0.75 in фCAM (sec) (degrees) (mm) 0.0 0 0 0.2 30 0.1 0.4 60 0.3 0.6 90 0.5 0.8 120 0.6 1.0 150 0.6 1.2 180 0.6 210 0.6 1.6 240 0.5 1.8 270 0.3 2.0 300 0.1 2.2 330 0 2.4 360 0 . 1.4 . . . NNN . . .
