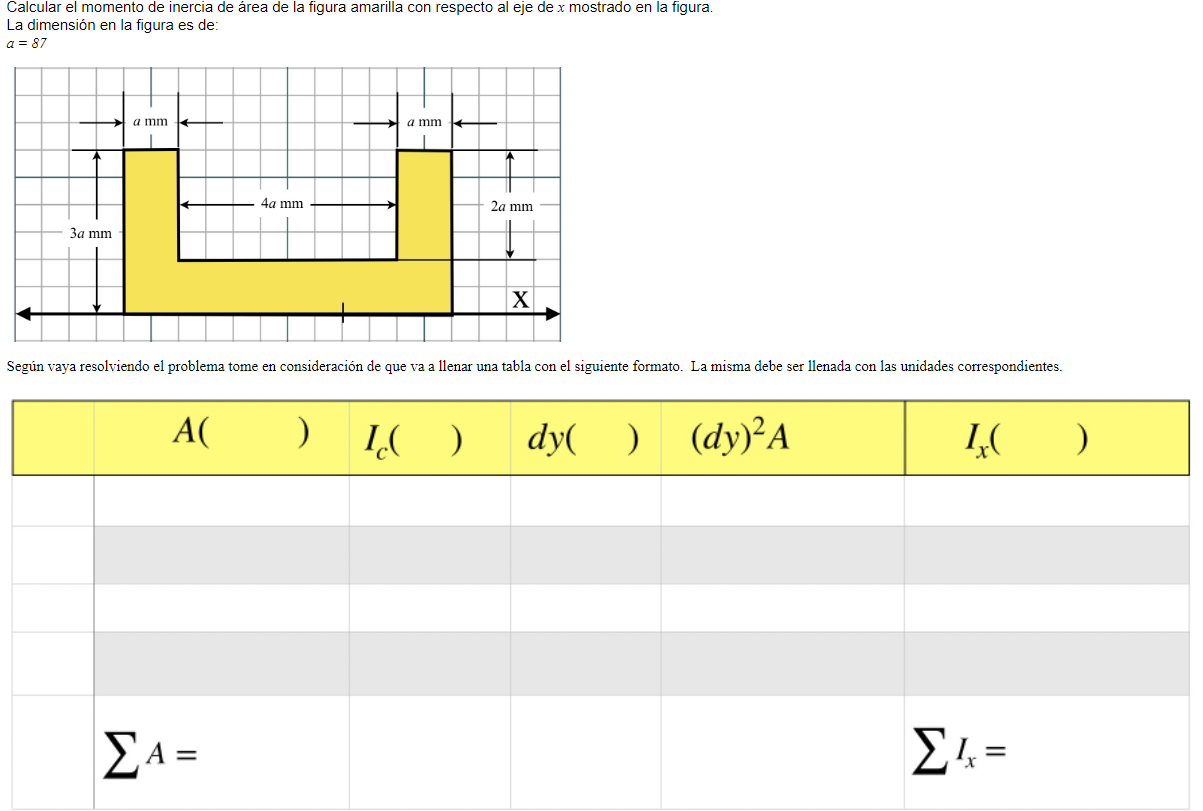

Calculate the area moment of inertia of the yellow figure with
respect to the x-axis shown in the figure.
The dimension in the figure is:
a = 87
As you solve the problem, take into consideration that you are
going to fill in a table with the following format. It must be
filled with the corresponding units.
Calculate The Area Moment Of Inertia Of The Yellow Figure With Respect To The X Axis Shown In The Figure The Dimension 1 (115.69 KiB) Viewed 8 times
Calcular el momento de inercia de área de la figura amarilla con respecto al eje de x mostrado en la figura. La dimensión en la figura es de: a = 87 a mm a mm 4a mm 2a mm 3a mm x Según vaya resolviendo el problema tome en consideración de que va a llenar una tabla con el siguiente formato. La misma debe ser llenada con las unidades correspondientes. AC ) IC) dy( ) (dy)?A LO ) ΣΑ = Σι =
