Example: First Finite Element Analysis in SolidWorks Test the Finite Element Method using the simply supported beam show

Post by answerhappygod »

Example First Finite Element Analysis In Solidworks Test The Finite Element Method Using The Simply Supported Beam Show 1
Example First Finite Element Analysis In Solidworks Test The Finite Element Method Using The Simply Supported Beam Show 1 (22.4 KiB) Viewed 10 times

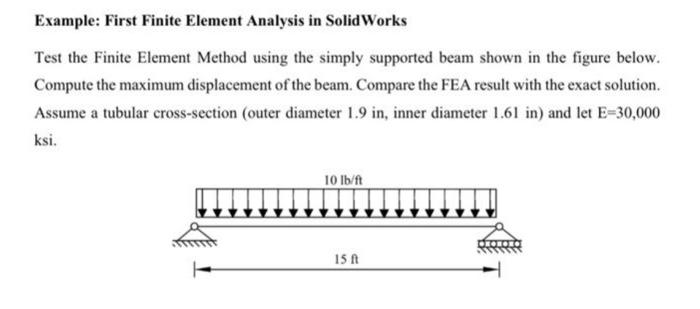

Example: First Finite Element Analysis in SolidWorks Test the Finite Element Method using the simply supported beam shown in the figure below. Compute the maximum displacement of the beam. Compare the FEA result with the exact solution. Assume a tubular cross-section (outer diameter 1.9 in, inner diameter 1.61 in) and let E=30,000 ksi. 10 lb/ft 15
